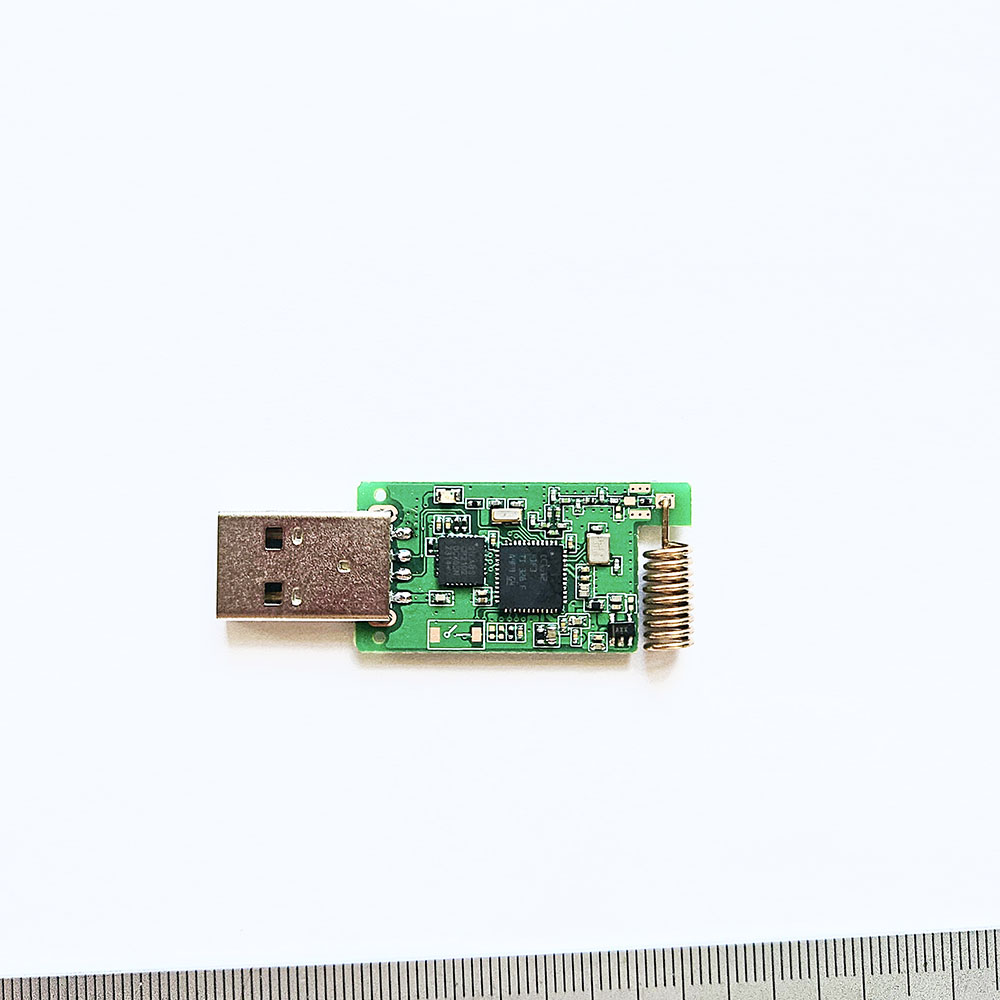

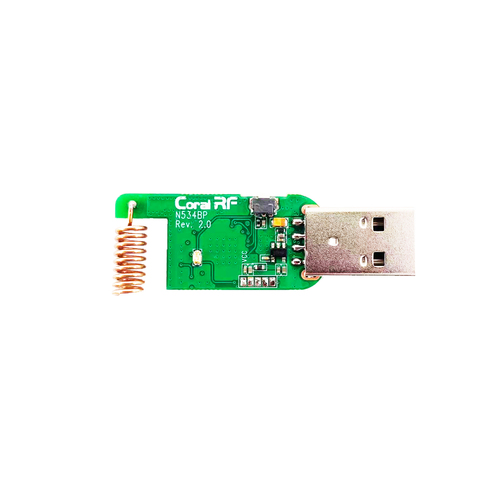

The N534EP is a feature-rich, programmable USB Sub-1 GHz radio dongle based on the advanced Texas Instruments CC1314 wireless microcontroller. Supporting key ISM bands from 169 MHz to 1200 MHz, it provides a versatile, low-power RF-to-USB bridge for IoT, smart metering, industrial automation, and long-range communication systems. Its integrated user button and status LED, combined with comprehensive development access, make it an ideal tool for both rapid prototyping and final product integration.

Key Features

Multi-Band Support: Available in variants for 433 MHz, 868/915 MHz, and 1200 MHz ISM bands.
User Interaction: Features a programmable button for user input (e.g., reset, mode switch) and a multi-color status LED for visual feedback on power, link, and data activity.
Onboard Programmability: The dongle supports in-system programming (ISP) via USB. Users can develop and flash custom firmware directly through the virtual COM port using a serial bootloader, enabling full application customization without a hardware debugger.
High-Performance Core: Powered by the TI CC1314 (CC1314R106T0RGZ), integrating an ARM Cortex-M4F and a dedicated RF core for efficient wireless processing.
Plug-and-Play USB: Enumerates as a standard CDC serial port, requiring no external drivers on modern operating systems.
Developer-Ready: LED I/O, buttom I/O and debug I/O pins are accessible via side headers for peripheral expansion and deep-level debugging.
Robust Design: 4-layer PCB with excellent RF layout for optimal impedance matching, interference immunity, and thermal performance.

Technical Specifications

Parameter	Specification	Details / Conditions
Frequency Bands	433, 868, 915, 1200 MHz	Select by model (see Ordering Info)
RF Output Power	+14 dBm (max)	Programmable, 25 mW equivalent
Receiver Sensitivity	-110 dBm	Typical @ 50 kbps
Data / Symbol Rate	0.3 – 4000 kbps	Software programmable
Frequency Stability	±1 kHz	Integrated TCXO
User Interface	1x Programmable Button, 1x RG Status LED	For control and visual status indication
Programming Interface	USB (Serial Bootloader) & JTAG/SWD Debug Header	Allows firmware updates via USB and advanced debugging
Operating Range	Up to 1000 m	Clear LOS, 3 dBi antenna, 2.5m height, 1.2 kbps
Antenna Interface	IPEX Connector & On-board Spring Antenna
Host Interface	USB 2.0 (Virtual COM Port)
Power Supply	5V ±0.25V (USB Bus-Powered)
Current Consumption	TX: ~30 mA, RX: ~15 mA	Typical
Operating Temperature	-30°C to +75°C

Development & Programming Support
The N534EP is designed for a seamless development experience:

Schematic & Layout: The baseboard schematic is available for download from our official website.
Firmware Development: Develop applications using TI's SimpleLink CC13xx SDK in Code Composer Studio or IAR Embedded Workbench.
In-Field Updates: Utilize the built-in serial bootloader to deploy new firmware over USB without opening the enclosure.
Advanced Debugging: Access the standard JTAG/SWD header for real-time debugging and profiling.
Technical Support: For specific programming guides, debug assistance, or custom project requirements, please contact our technical team.

Ordering Information

Model Number	Target Frequency Band	Core Chip	Output Power
N534EP-CC1314-433M	433 MHz (410-510 MHz)	CC1314R106T0RGZ	+14 dBm
N534EP-CC1314-868M	868 MHz (860-930 MHz)	CC1314R106T0RGZ	+14 dBm
N534EP-CC1314-1200M	1200 MHz (1200-1250 MHz)	CC1314R106T0RGZ	+14 dBm

Note: End users are responsible for ensuring regulatory compliance (FCC, CE, etc.) for their final product. Specifications are subject to change without notice.

Why Choose the N537EP Dongle?

Accelerate Development: Go from concept to a functional wireless link in minutes, not days.
Professional Performance: Get lab-grade RF performance in a portable, affordable tool.
Maximum Flexibility: Use it as a simple transceiver, a development bridge, or a core component in a custom embedded system.
Global Ready: Select the frequency band that matches your target market.

Product Line Positioning: Find Your Fit

The N537BP is designed for a fundamentally different development path compared to our full-stack dongles adpter.

Feature Model	14dBm N534BP Dongle	14dBm N534EP Dongle	0.5 Watt N537BP Dongle	0.5 Watt N537EP Dongle
Core MCU	CC1312R	CC1314R10	CC1312R	CC1314R10
On-Chip Flash	352KB	1 MB	352KB	1 MB
Freqe	433/868/915Mhz	433/868/915Mhz	433/868/915Mhz	433/868/915Mhz

Core Value	High-Performance Custom Stack	Pre-Integrated Standard Protocols	High-Performance Custom Stack	Pre-Integrated Standard Protocols
Development Focus	Develop highly optimized, proprietary stacks.	Develop your application only, using pre-built, certified stacks.	Develop highly optimized, proprietary stacks.	Develop your application only, using pre-built, certified stacks.
Ideal For	Performance-critical networks needing maximum RF control.	Smart Utilities (AMI), Smart Cities, projects needing Wi-SUN/WM-Bus, or minimizing dev time & risk.	Performance-critical networks needing maximum RF control.	Smart Utilities (AMI), Smart Cities, projects needing Wi-SUN/WM-Bus, or minimizing dev time & risk.
Next Step	Learn More →	Learn More‍ ‍→‍	Learn More →	Learn More‍ ‍→‍

Simple Selection Guide:

Choose the N537 Series (N537BP/N537EP) if you are building a unique, proprietary protocol and have the resources for full-stack development.
Choose the N537EP if your project requires standard protocols (like Wi-SUN or Wireless M-Bus) or your primary goal is to larger development time, cost, and risk.
