Product Overview
The N730AP is a versatile and cost-optimized USB dongle designed to deliver robust, long-range connectivity for 2.4 GHz IoT networks. At its core is the Texas Instruments CC2652P wireless microcontroller, which uniquely integrates a high-efficiency, +20 dBm power amplifier (PA) directly on-chip. This innovative design eliminates the need for an external RF front-end, reducing complexity and cost while maintaining excellent performance. Supporting key protocols like Zigbee, Bluetooth® 5.2 Low Energy, Thread, and 6LoWPAN, the N730AP is an ideal plug-and-play solution for creating reliable smart home gateways, network routers, and development tools.

Key Features & Benefits

Integrated High Power Amplifier: The CC2652P's on-chip +20 dBm PA provides extended range and improved link reliability with best-in-class transmit current consumption (~85 mA), simplifying design and BOM.
Comprehensive Multi-Protocol Support: Functions as a compliant node for Zigbee, Bluetooth 5.2 LE, Thread, and IEEE 802.15.4 networks, offering flexibility for diverse IoT applications.
Optimized for Low-Power Operation: Features an ultra-low power sensor controller and efficient power management, enabling deployment in energy-sensitive applications.
Enhanced Industrial Reliability: Designed with features like SRAM parity for low soft error rates (SER), ensuring stable, long-term operation in demanding environments.
Plug-and-Play USB Interface: Enumerates as a standard serial (CDC) device, compatible with Windows, Linux, and Raspberry Pi hosts without custom drivers.

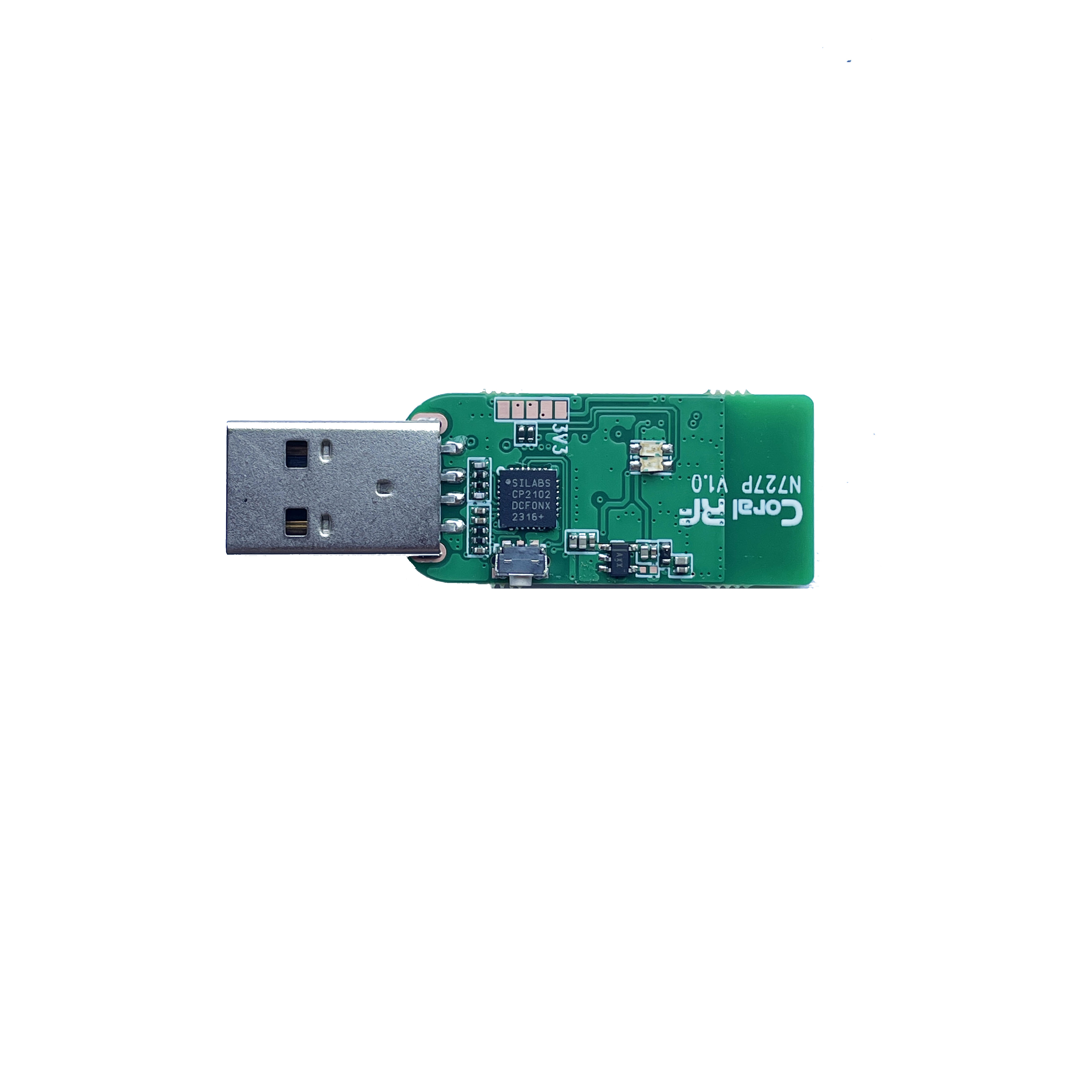

Complete & Compact Design: Integrates the MCU, USB-UART bridge, PCB antenna (with IPEX option), status LED, and user button into a single, rugged USB stick form factor.

Target Applications

Smart Home & Building Automation Hubs: As a coordinator or router for Zigbee or Thread mesh networks.
IoT Network Extenders: To boost the coverage and reliability of existing wireless sensor networks.
Prototyping & Development Tools: A primary platform for developing and testing multi-protocol applications.
PC-Connected Peripherals: For data logging, network management, or as a wireless interface for industrial PCs.

Technical Specifications

Parameter	Specification
Core IC	Texas Instruments CC2652P (Integrated PA)
Frequency Band	2400 – 2500 MHz (2.4 GHz ISM)
Supported Protocols	Zigbee, Bluetooth 5.2 LE, Thread, 6LoWPAN, IEEE 802.15.4, Proprietary
Max. Output Power	+20 dBm (from integrated on-chip PA)
Receiver Sensitivity	Excellent (e.g., -105 dBm for BLE 125kbps Coded PHY)
TX Current	~100 mA (typical @ +20 dBm)
RX Current	~15 mA
Main Processor	ARM® Cortex®-M4F
Host Interface	USB 2.0 (Virtual COM Port)
User Interface	1x Programmable Button, 1x Status LED
Antenna	Integrated PCB Antenna + IPEX Connector
Power Supply	5V via USB Bus Power
Operating Temperature	-30°C to +75°C
Dimensions (PCB)	37 x 17 x 7 mm

Development Support

Software Support: Fully compatible with TI's SimpleLink™ CC13xx/CC26xx SDK, enabling rapid application development.
Hardware Access: Debug pins (JTAG/SWD) are accessible for in-circuit programming and advanced debugging.

Ordering Information

Model	Core IC	Key Features	Output Power
N730AP	CC2652P	Zigbee, BLE 5.2, Thread, Integrated +20dBm PA	+20 dBm

Why Choose the N730AP?

Simplified Design: The integrated PA reduces component count, board space, and overall system cost.
Efficient Power Use: Achieves high output power with remarkably low transmit current, extending potential battery life in routed networks.
Proven Reliability: Industrial-grade features ensure stable performance for continuous operation.

Feature / Model	20dBm N730AP Dongle	20dBm N728AP Dongle	20dBm N729AP Dongle	22dBm N710BP Dongle
Core MCU	CC2652P	CC2652P7	CC2674P10	CC2538 + CC2592
On-Chip Flash	352 KB	704 KB	1 MB	512 KB
Frequency	2400 MHz	2400 MHz	2400 MHz	2400 MHz
Core Value	High-Performance Custom Stack	Pre-Integrated Standard Protocols	High-Performance Custom Stack	Pre-Integrated Standard Protocols
Development Focus	Develop highly optimized, proprietary stacks.	Develop your application only, using pre-built, certified stacks.	Develop highly optimized, proprietary stacks.	Develop your application only, using pre-built, certified stacks.
Ideal For	Zigbee 3.x, Bluetooth 5.2 LE, Thread, and 6LoWPAN.	Zigbee 3.x, Bluetooth 5.2 LE, Thread, and 6LoWPAN.	Zigbee 3.x, Bluetooth 5.3 LE, Thread, and 6LoWPAN.	Zigbee 3.x, Thread, and 6LoWPAN.
Next Step		[Learn More →]	[Learn More →]	[Learn More →]

Simple Selection Guide:

Choose the N72XAP Series (N728AP /N729AP /N730AP/N710BP ) if you are building a unique, proprietary protocol and have the resources for full-stack development.
Choose the N710BP if your project is based on mature Zigbee or Thread and you prioritize a proven, integrated solution to accelerate time-to-market.
