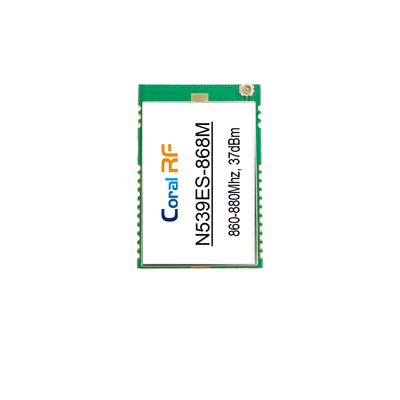

N539ES High-Power Sub-1GHz Transceiver Module
5 Watts of Reliable Reach for Industrial IoT
Overview
Sometimes you need to talk to a sensor that's 10 km away—across a valley, through a factory floor, or buried in a remote pipeline station. The CC1314R10 inside is a capable chip on its own, but at +14 dBm, it won't make that kind of distance.
The N539ES adds a serious power amplifier.
We took Texas Instruments' CC1314R10 —a Sub‑1GHz wireless MCU with an Arm Cortex‑M33 core, TrustZone security, and a dedicated sensor controller—and paired it with a high‑performance front‑end. The result is +37 dBm (5 watts) of transmit power, with sensitivity down to -112 dBm at 50 kbps. That's enough for line‑of‑sight links beyond 10 km.
The module handles 433 MHz, 868 MHz, 915 MHz, 980M, 1040M and 1080MHz bands, so one design can serve Europe, the Americas, and Asia. All the RF matching, the TCXO, and the PA are done. You focus on your application code.
What You're Working With
Why Engineers Choose the N539ES
That 5‑Watt Punch
+37 dBm is not subtle. It punches through concrete, trees, and distance. If you need to cover a port, a mine, or a large farm, this module will do it.
The CC1314R10 Advantage
The core MCU brings serious capability: TrustZone security , a sensor controller that runs autonomously at 2 MHz drawing only 32 µA , and enough flash (1 MB) to run Wi‑SUN, Wireless M‑Bus, or proprietary stacks.
Global Bands, One Design
Choose 433, 868, or 915 MHz. The module stays the same—you just pick the variant that matches your region.
Thermal and Power Are Handled
We know 5 W generates heat. The module is designed for pulsed operation, and the pad layout helps get heat out. But you still need to design your supply to deliver 2A cleanly. See our power supply design notes.
Development Flow
All CC1314R10 pins are broken out. Flash and debug via JTAG, use the TI SimpleLink SDK, and treat it like any other Cortex‑M33 project.
Where It Goes
Industrial IoT gateways – Collecting data from sensors spread across large facilities.
Smart metering concentrators – Wireless M‑Bus or proprietary AMR networks.
Long‑range sensor networks – Agricultural monitoring, pipeline pressure, environmental logging.
Asset tracking – Containers, rail cars, heavy equipment that move across regions.
Backup communications – When cellular isn't available or costs too much.
Pin Layout (26‑Pin)
Compare the Family
| Model | Core | PA | Output Power | Form Factor | Best For |
|---|
| N532AS | CC1310 | None | +26 dBm | SMD | Low‑power sensors, short range |
| N532ES | CC1314R10 | Integrated PA | +26 dBm | SMD | Gateways, handheld readers, development |
| N533ES | CC1314R10 | Integrated PA | +30 dBm | SMD | Gateways, handheld readers, development |
| N536ES | CC1314R10 | Integrated PA | +33 dBm | SMD | Gateways, handheld readers, development |
| N539BS | CC1312R | Integrated PA | +37 dBm | SMD | Gateways, handheld readers, development |
| N537EP | CC1314R10 | Integrated PA | +27 dBm | USB stick | Gateways, handheld readers, development |
| N539ES | CC1314R10 | Integrated PA | +37 dBm | SMD | Extreme range, industrial gateways, rural deployments |
All modules supported by TI SimpleLink SDK .
📘 Learn more about Sub‑1GHz IoT gateway solutions.
Ordering Information
Design Notes
Power Supply
At +37 dBm, the module draws up to 2 A peaks. Your 5 V supply needs low noise and enough bulk capacitance to handle those transients. Read our guide on power supply design for high‑power RF modules.
Antenna
Range is only as good as the antenna. Use a well‑matched antenna tuned to your frequency, and keep the RF trace short.
Thermal Management
Pulsed operation (typical for Sub‑1GHz) keeps heating manageable. But if you're transmitting long packets at high duty cycles, consider a small heatsink or airflow.
Regulatory
This much power needs care with local rules. We've designed the module to help with compliance, but final certification is your responsibility.
Get Started
📄 Download N539ES datasheet (PDF)
📘 CC1314R10 technical reference manual
🧪 Request samples or evaluation boards
📞 Talk to an applications engineer
Specifications subject to change. Actual range depends on antenna, environment, and local regulations. Ensure compliance with regional radio laws before deployment.
