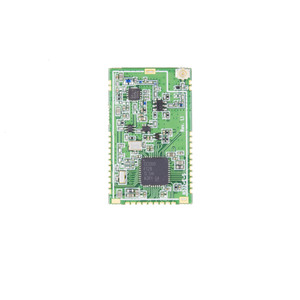

N536ES | CC1314R10 + PA | +33dBm | 433/868/915MHz High-Power Wireless Module

N536ES | CC1314R10 + PA | +33dBm | 433/868/915MHz High-Power Wireless Module
Frequency : 433M, 868M, 915 MHz
Output Power : +33 dBm
Port : UART, SPI
Size : 36x24x3mm
Brand : Coral RF
Modulation : FSK
Package : SMD
Model : N536ES
Price :
$14.80
Details

N536ES High-Power, Multi-Band Wireless Module

Based on CC1314R10 & PA | +33 dBm | 433/868/915/1050 MHz Support

Overview
N536ES is an industrial-grade, high-performance wireless module that integrates Texas Instruments CC1314R10 wireless microcontroller, Power Amplifier (PA) and LNA. Designed to deliver exceptional output power of up to +33 dBm, down to -112 dBm sensitivity at 50kbps, supports global Sub-1GHz ISM bands—433 MHz, 868 MHz, 915 MHz, 1050Mhz—suitable for long-range, reliable communication in diverse IoT and M2M applications.


Key Features

  • High Output Power: +33 dBm maximum output power.

    Multi-Band Flexibility: Supports 433 MHz, 868 MHz, 915 MHz and 1050 MHz ISM bands.

    Excellent Receiver Sensitivity: -112 dBm at 50 kbps.

    Ultra-Low Power Operation: Leverages the CC1314R10's advanced power management for long battery life in remote applications.

    Comprehensive Interface Support: Provides UART and SPI host interfaces, plus accessible GPIOs for custom development.

    Technical Specifications Summary

    CategoryParameterSpecification
    RF CoreMCU / RadioTexas Instruments CC1314R10

    PA / LNAIntegrated PA and LNA
    RF PerformanceFrequency Range410 - 1050 MHz (Model Specific: 433, 868, 915 MHz)

    Max. Output Power+33 dBm

    Receiver Sensitivity-112 dBm @ 50 kbps (868 MHz)

    Max. Data RateUp to 4000 kbps

    Typical Range8000 m (Line-of-sight, ideal conditions)
    ElectricalSupply Voltage (MCU VCC)3.0V - 3.6V (Typ. 3.3V)

    Supply Voltage (PA VCCPA)4.5V - 5.5V (Required for high-power TX)

    TX Current~1200 mA (Typ. @ +33 dBm)

    RX Current12 mA

    Sleep Current< 10 µA (CC1314R low-power modes)
    Physical & InterfaceDimensions36.0 x 24.0 x 3.0 mm

    Antenna InterfaceIPEX Connector & RF Pad

    Host InterfacesSPI, UART, Programmable GPIOs

    PackageSMD

    Operating Temperature-30°C to +70°C

    N536ES Module Pinout Description

    Pin No.Pin NameTypeDescription
    1GNDPowerPower Ground.
    2GNDPowerPower Ground.
    3VCCPAPowerPA Power Supply (High Current). Range: 4.5V - 5.5V.
    4VCCPAPowerPA Power Supply (High Current). Range: 4.5V - 5.5V.
    5GNDPowerPower Ground.
    6DIO2Digital I/OProgrammable GPIO of the CC1312R MCU.
    7DIO3Digital I/OProgrammable GPIO of the CC1312R MCU.
    8DIO5Digital I/OProgrammable GPIO of the CC1312R MCU.
    9DIO6Digital I/OProgrammable GPIO of the CC1312R MCU.
    10DIO7Digital I/OProgrammable GPIO of the CC1312R MCU.
    11DIO8Digital I/OProgrammable GPIO of the CC1312R MCU.
    12VCCPowerMCU Core Supply. Range: 3.0V - 3.6V (Typ. 3.3V).
    13GNDPowerPower Ground.
    14RESETDigital InputModule Hardware Reset (Active Low).
    15TMSDigital I/OJTAG Test Mode Select for debugging/programming.
    16TCKDigital InputJTAG Test Clock for debugging/programming.
    17DIO18Digital I/OProgrammable GPIO of the CC1312R MCU.
    18DIO19Digital I/OProgrammable GPIO of the CC1312R MCU.
    19DIO20Digital I/OProgrammable GPIO of the CC1312R MCU.
    20DIO21Digital I/OProgrammable GPIO of the CC1312R MCU.
    21DIO22Digital I/OProgrammable GPIO of the CC1312R MCU.
    22DIO23ADC/Digital I/OProgrammable GPIO of the CC1312R MCU.
    23DIO24ADC/Digital I/OProgrammable GPIO of the CC1312R MCU.
    24DIO25ADC/Digital I/OProgrammable GPIO of the CC1312R MCU.
    25RFRF I/O50Ω Antenna Port. Connect to antenna via IPEX or microstrip.
    26GNDPowerPower Ground.

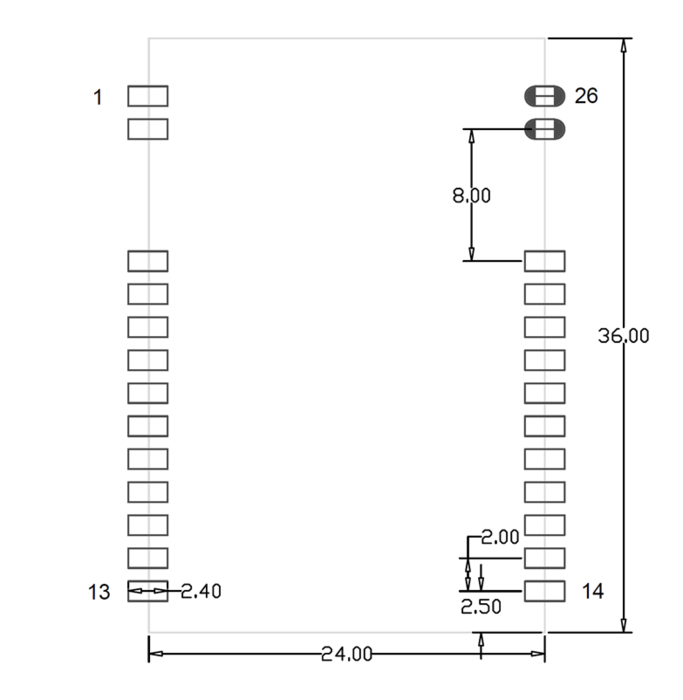

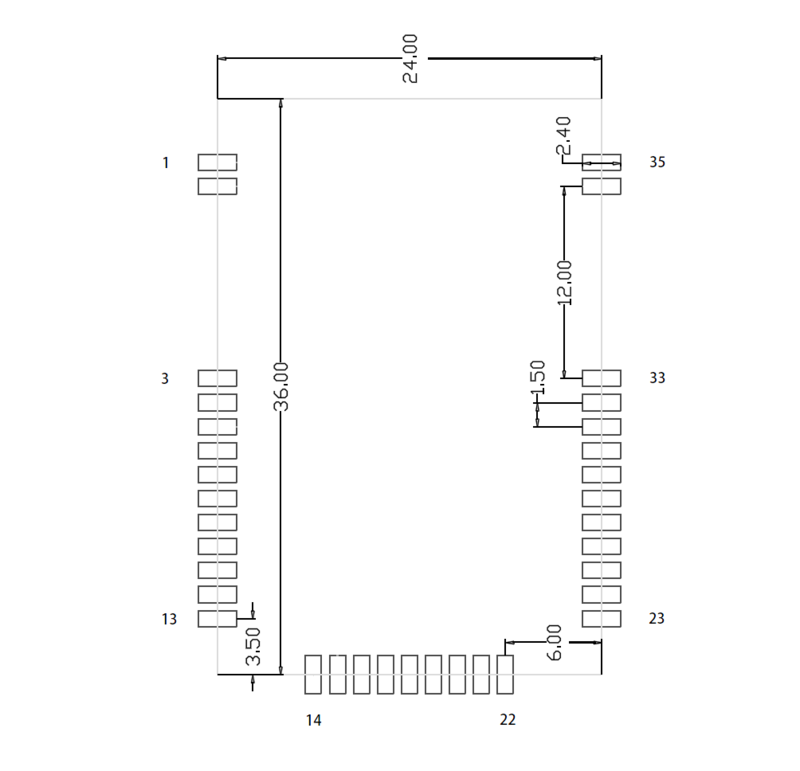

N536ES package

Applications

  • Industrial IoT & wireless sensor networks

  • Smart metering (water, gas, electricity)

  • Long-distance telemetry and remote control

  • Smart city infrastructure (lighting, environmental monitoring)

  • Agricultural and environmental sensing


Ordering Information

ModelFrequency RangeOutput Power
N536ES-CC1314R10-433M410–510 MHz+33 dBm
N536ES-CC1314R10-868M860–880 MHz+33 dBm
N536ES-CC1314R10-915M902–928 MHz+33 dBm
N536ES-CC1314R10-980M960–980 MHz+33 dBm
N536ES-CC1314R10-1050M930–950 MHz+33 dBm

Custom frequency configurations and technical support are available upon request.

Why Choose the N536ES Module?

  • Purpose-Built for Critical Networks: Offers optimized, reliable performance in the dedicated 433/868/915/960/1050MHz band.

  • Solve Extreme Range Challenges: Delivers up to 8km range, reducing the need for additional infrastructure.

  • Power-Efficient for Field Deployment: Ultra-low sleep current enables truly long-life battery operation.

  • Accelerate Development: A fully integrated RF solution with MCU allows you to focus on application-layer innovation

📊 Product Specifications (Transposed)

ModelChipMax TX PowerFrequency BandsDetails
N624PACC1314R10+27 dBm433 / 868 / 915 MHz[Learn More →]
N532ESCC1314R10+31 dBm433 / 868 / 915 / 1050 MHz[Learn More →]
N536ESCC1314R10+33 dBm433 / 868 / 915 / 1050 MHz[Learn More →]
N538ESCC1314R10+35 dBm433 / 868 / 915 / 1050 MHz[Learn More →]
N539ESCC1314R10+37 dBm433 / 868 / 915 / 1050 MHz[Learn More →]

💡 Selection Guide

  • All models share the same CC1314R10 Sub‑1GHz wireless MCU.

  • TX power steps from 27 dBm to 37 dBm in ≈2‑4 dB increments.

  • The N624PA supports only three bands (433/868/915 MHz), while all others add 1050 MHz support.

  • Higher‑power models (≥31 dBm) are the ones that also support 1050 MHz, likely to maximize range in that band.

  • Standard protocols (like Wi-SUN or Wireless M-Bus) or primary goal is to larger development time, cost, and risk.

  • Select the corresponding output power module based on the distance.
