Exceptional Range: Achieves up to 8km line-of-sight thanks to integrated +27 dBm output power.
Unmatched Power Efficiency: Leakage current as low as 1 µA, enabling multi-year battery life for IoT devices.
Global Compliance: Ready for global deployments, supporting 868 MHz (EU) and 915 MHz (USA) ISM bands, with variants for other regions.
High Integration: Combines a powerful ARM® Cortex®-M4 MCU (CC1311R3) and a range booster (CC1190) in a compact, surface-mount module.
Developer-Friendly: Full pin-out access and robust AT Command support for rapid prototyping and integration.
Robust Link Reliability: Excellent sensitivity of -112 dBm (at 50 kbps) ensures stable communication in noisy environments.

Target Applications

Industrial IoT: Asset tracking, process monitoring, wireless sensor networks.
Smart City: Smart metering (water, gas, electricity), smart street lighting, waste management.
Long-Range Connectivity: Agricultural sensors, environmental monitoring, remote control systems.
Building Automation: HVAC control, security systems, energy management.

Technical Specifications

RF Performance

Parameter	Specification	Conditions
Frequency Bands	868 MHz, 915 MHz	N623PA-868M, N623PA-915M
Max. Output Power	+27 dBm	With integrated CC1190 PA
Receiver Sensitivity	-112 dBm	@ 50 kbps
Data Rate	0.3 to 4000 kbps	Software Configurable
Typical Range	8000 meters	LOS, 1.2 kbps, +3 dBi antenna

Global ISM Band Support

Band	Frequency Range	Region
770M Band	770 - 780 MHz	China
868M Band	868 - 870 MHz	EU, China
888M Band	888 - 889 MHz	Australia
915M Band	902 - 928 MHz	USA

Electrical & Physical Characteristics

Parameter	Min.	Typ.	Max.	Unit
Supply Voltage	1.8	3.3	3.6	V
Tx Current (Peak)	-	450	-	mA
Rx Current	-	10	-	mA
Sleep Current	-	1	-	µA
Operating Temperature	-30	-	+75	°C
Dimensions	32.8 x 24.6 x 3.0			mm
Antenna Interface	IPX / U.FL & Stamp Holes

N621PA CC1190 RF Front-End Control Logic

The CC1190 high-power amplifier is controlled via three digital I/O pins:

Operating Mode	DIO7	DIO8	DIO9
TX (Transmit)	1	0	1
RX (Receive)	0	1	1
Sleep	0	0	0

Application Note: These control signals should be managed by the CC1312r microcontroller to automatically switch between transmit and receive modes during wireless communication.

N621PA Module Pinout Description

Pin No.	Function	Description	Pin No.	Function	Description
1	GND	Power Ground	19	DIO17	Programmable I/O
2	VCCPA	PA Power (2.0-3.6V)	20	DIO18	Programmable I/O
3	VDD	CC1312r Core Power	21	DIO19	Programmable I/O
4	DIO1	Programmable I/O	22	RESET	Module Reset
5	DIO2	Programmable I/O	23	DIO20	Programmable I/O
6	DIO3	Programmable I/O	24	DIO21	Programmable I/O
7	DIO4	Programmable I/O	25	DIO22	Programmable I/O
8	DIO5	Programmable I/O	26	DIO23	ADC & Programmable I/O
9	DIO6	Programmable I/O	27	DIO24	ADC & Programmable I/O
10	DIO10	Programmable I/O	28	DIO25	ADC & Programmable I/O
11	DIO11	Programmable I/O	29	DIO26	ADC & Programmable I/O
12	DIO12	Programmable I/O	30	DIO27	ADC & Programmable I/O
13	DIO13	Programmable I/O	31	DIO28	ADC & Programmable I/O
14	DIO14	Programmable I/O	32	DIO29	ADC & Programmable I/O
15	DIO15	Programmable I/O	33	DIO30	ADC & Programmable I/O
16	TMS	JTAG Test Mode	34	RF	Antenna Connector
17	TCK	JTAG Test Clock	35	GND	Power Ground
18	DIO16	Programmable I/O

N621PA Mechanical Specifications

Parameter	Specification	Notes
Board Thickness	1.2 mm	Enhanced thermal performance
PCB Layers	4	Optimized impedance control
Mounting Type	Surface Mount (SMD)
Antenna Options	IPEX Connector / RF Pad	50Ω impedance matched

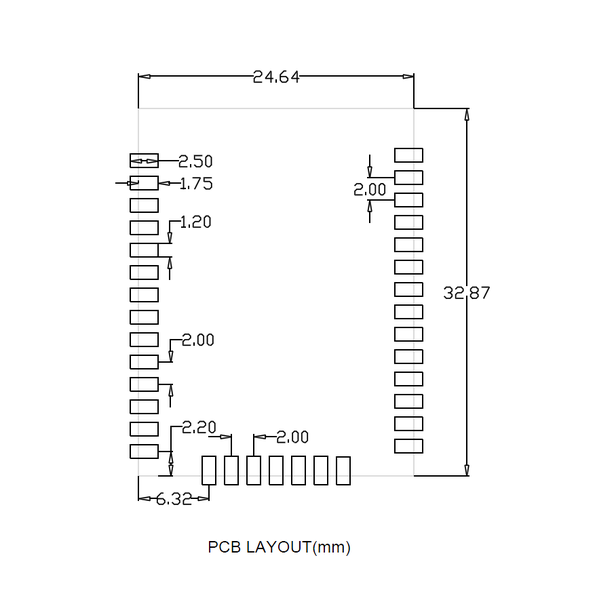

N623PA package

Interfaces & Control

Host Interface: UART (with AT Command set), SPI
Development: All key MCU pins (GPIO, ADC, etc.) are accessible for secondary development.
Package: Surface-Mount Device (SMD)

Why Choose the N623PA Module?

Get to Market Faster: We handle the complex RF design and regulatory certifications (for supported bands), allowing you to focus on your application. The integrated AT command set slashes development time.
Design for Battery Life: The ultra-low power architecture of the CC1311R3, combined with our power-optimized design, ensures your product can run for years on a single battery.
Solve Long-Range Challenges: Stop worrying about connectivity. With its high output power and excellent receiver sensitivity, the N623PA provides the reliable, long-range link your application needs, even in challenging environments.
A Platform for Your Projects: The powerful onboard MCU offers ample processing power and GPIO to add intelligence and functionality directly to the module, reducing system complexity and cost.

Ordering Information

Ordering Code	Core ICs	Frequency	Output Power

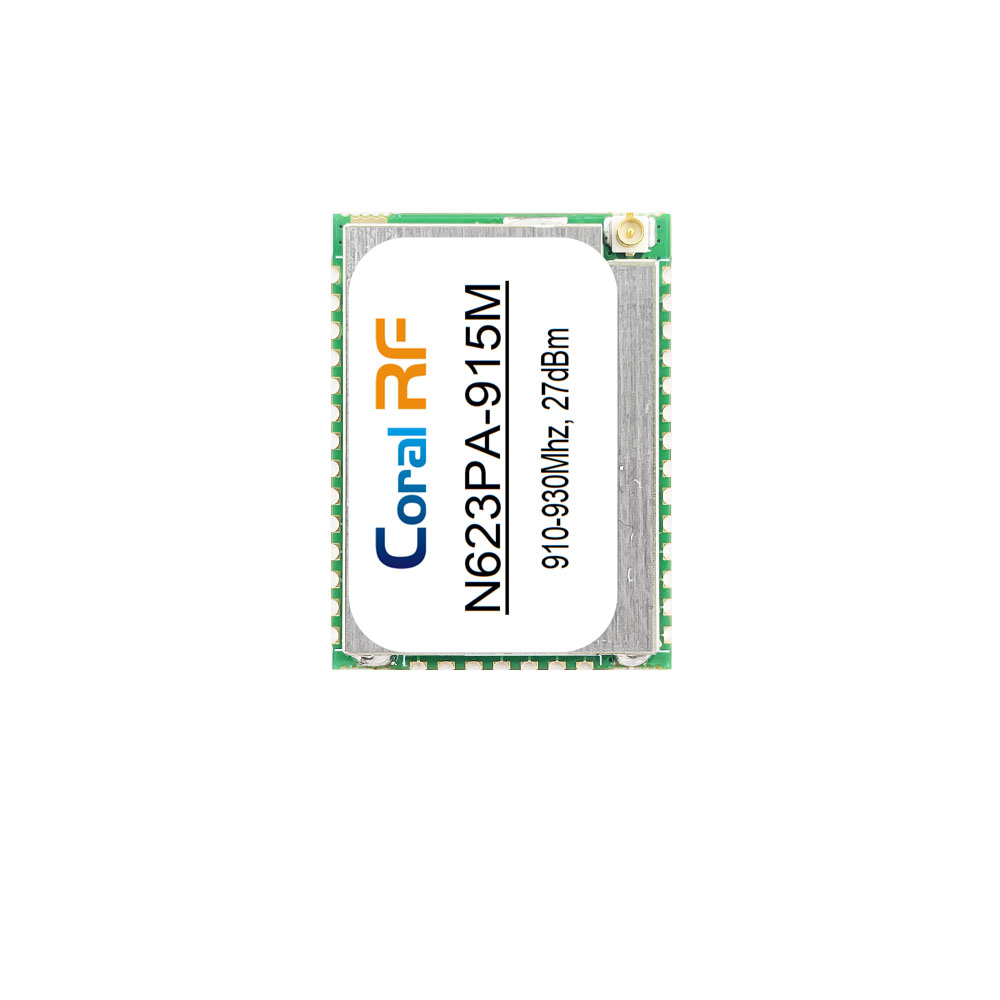

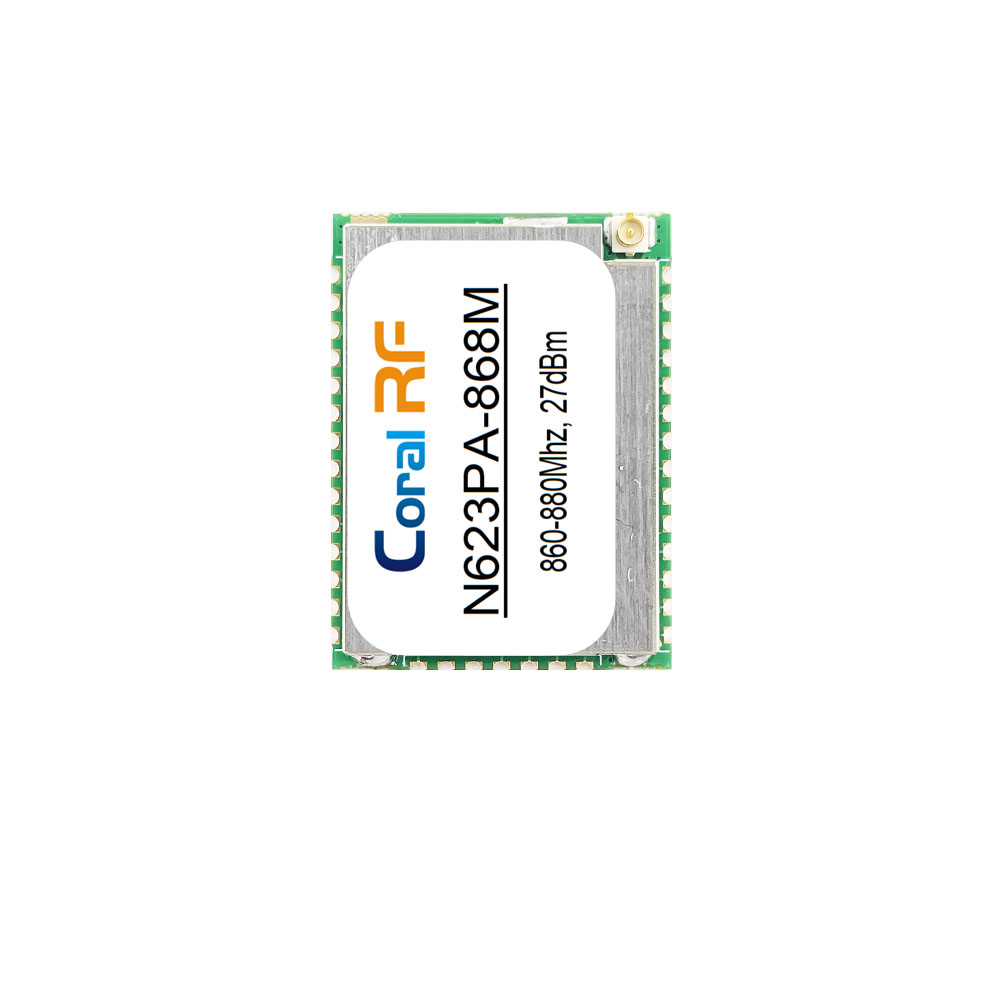

N623PA-868M	CC1311R3 + CC1190	860 - 880 MHz	+27 dBm
N623PA-915M	CC1311R3 + CC1190	910 - 930 MHz	+27 dBm

Custom frequency variants and conformance pre-certification are available upon request.

Product Line Positioning: Build Your Stack

Use the following comparison to decide between building a custom protocol or using a pre-integrated solution based on your project needs:

The N621PA is engineered for in-depth custom development. It complements "turnkey" solutions within the N62xPA series.

Feature Model	N620PA Module	N621PA Module (This Product)	N624PA Module
Core MCU (Flash)	TI CC1310 (128KB)	TI CC1312R (352KB)	TI CC1314 (1024KB)
Core Value	Foundation for custom protocols with cost optimization.	Custom protocols with enhanced complexity and feature space.	Pre-integrated standard protocols for rapid deployment.
Development Focus	Develop/port your full stack via SPI/UART.	Develop/port complex, feature-rich stacks via SPI/UART.	Develop your application only, using pre-integrated stacks via UART AT commands.
Ideal For	Unique networks where protocol control is critical within a budget.	Custom applications requiring more code space and advanced features.	Smart meters, utilities, projects needing WM-Bus/Wi-SUN or minimal development time.
Next Step	[View N620PA Details →]	[⤓Download N621PA datasheet]	[Discover N624PA Solution →]

Simple Selection Guide:

Choose the N62xPA Series (620/621/624) if you are building a unique, proprietary protocol and have the resources for full-stack development. Select based on required Flash size.
Choose the N624PA if your project requires standard protocols (WM-Bus/Wi-SUN) or your primary goal is to minimize development time and risk.
