Some networks need to cover serious ground—across a port, through miles of pipeline, or over thousands of hectares of farmland. And they need to do it reliably, without dropping packets.

The N519CS is built for those networks.

It delivers +37 dBm (5W) output power with -126 dBm sensitivity—a link budget that enables reliable communication beyond 16 km line-of-sight. That's enough reach to connect far-flung assets without repeaters, and enough margin to punch through interference and obstacles.

Built around the Texas Instruments CC1200 wideband transceiver and enhanced with an external high-power PA and LNA, this module is engineered for applications where long range and reliability are non-negotiable . The CC1200 core is optimized for wideband operation but also handles narrowband channels down to 12.5 kHz, making it versatile for various regulatory environments .

Available in 169 MHz, 433 MHz, 868 MHz, and 915 MHz variants—including the 169 MHz band specifically tailored for European and Chinese smart grid applications—the N519CS offers global deployment flexibility in a single 36×24 mm SMD footprint.

Why Choose the N519CS?

Feature	Benefit
+37 dBm (5W) output power	Reach assets 16+ km away without repeaters
-126 dBm sensitivity @ 1.2 kbps	Hear the weakest signals from network edges
TI CC1200 wideband core	Versatile for both wideband and narrowband applications, with excellent blocking performance
Dedicated TXEN, RXEN, LANEN pins	Precise power sequencing for battery-optimized designs
VTCXO support	±1 kHz frequency stability for regulatory compliance
Global band coverage	One design for 169/433/868/915 MHz deployments
-40°C to +85°C operation	Industrial reliability in harsh environments
SPI interface + programmable GPIOs	Full integration flexibility

Technical Specifications

Parameter	Specification
Core IC	TI CC1200 wideband transceiver
Front-End	External PA + LNA
Frequency Bands	169 MHz (160–175), 433 MHz (410–480), 868 MHz (860–880), 915 MHz (910–960)
Max Output Power	+37 dBm (5W) typical
RX Sensitivity	-126 dBm @ 1.2 kbps
Data Rate	0.3 – 500 kbps (programmable)
Typical Range	Up to 16 km (LOS, 1.2 kbps, 3 dBi antenna)
Core Supply (VCC)	3.3V
PA Supply (VCCPA)	5.0V ±0.5V (needs 2A peak capability)
TX Current (peak)	2000 mA @ +37 dBm
RX Current	35 mA typical
Sleep Current	1 µA typical
Interface	SPI + TXEN, RXEN, LANEN control pins
GPIOs	3 programmable
Antenna Connection	50Ω RF pad / IPEX connector
Dimensions	36.0 × 24.0 × 3.0 mm
Operating Temperature	-40°C to +85°C

Pin Configuration

Pin	Name	Description
1, 4, 5, 10, 20	GND	Ground
2, 3	VCCPA	PA supply (5V, 2A peak capability required)
6	TXEN	Transmit enable (active high)
7	RXEN	Receive enable (active high)
8	LANEN	LNA enable (active high)
9	VCC	Core supply (3.3V)
11	VTCXO	TCXO voltage control / enable
12	RESET	Module reset (active low)
13, 14, 18	GPIO3/2/0	Programmable GPIOs
15, 16, 17	MOSI, SCK, MISO	SPI interface
19	NSS	SPI chip select (active low)
21	RF	50Ω RF I/O

Compare the Family

All modules in our high-power family share the same 36×24 mm footprint, making it easy to scale your design from +15 dBm to +37 dBm without board changes.

Model	Core IC	Frequency Bands	Output Power	Sensitivity @ 1.2 kbps	Best For
N511AS-B	CC1120	169/433/868/915 MHz	+15 dBm	-122 dBm	Low‑power sensors, short range
N515AS-B	CC1120	169/433 MHz	+26 dBm	-125 dBm	Medium‑range sensors
N516AS-B	CC1120	868/915 MHz	+27 dBm	-124 dBm	Medium‑range sensors
N517AS	CC1120	169/433/868/915 MHz	+30 dBm	-126 dBm	Long‑range end nodes
N518AS	CC1120	169/433/868/915 MHz	+33 dBm	-126 dBm	Industrial gateways
N519AS	CC1120	169/433/868/915 MHz	+37 dBm	-126 dBm	SCADA, smart grid
N519BS	CC1125	169/433/868/915 MHz	+37 dBm	-126 dBm	Enhanced blocking/selectivity
N519CS	CC1200	169/433/868/915 MHz	+37 dBm	-126 dBm	Wideband applications, IEEE 802.15.4g

📘 View full product family — including module details, evaluation boards, and design resources.

Target Applications

Smart Grid / AMI Concentrators – 169 MHz band for European and Chinese utility metering, IEEE 802.15.4g applications
Oil & Gas Pipeline Monitoring – Remote SCADA links in unpowered locations
Wide-Area Sensor Networks – Environmental monitoring, weather stations over thousands of hectares
Industrial Automation – Reliable telemetry for distributed infrastructure
Backhaul Links – Replace multiple gateways with one long-range connection
IEEE 802.15.4g Systems – Dedicated packet handling for smart utility networks

Ordering Information

Order Code	Frequency	Output Power

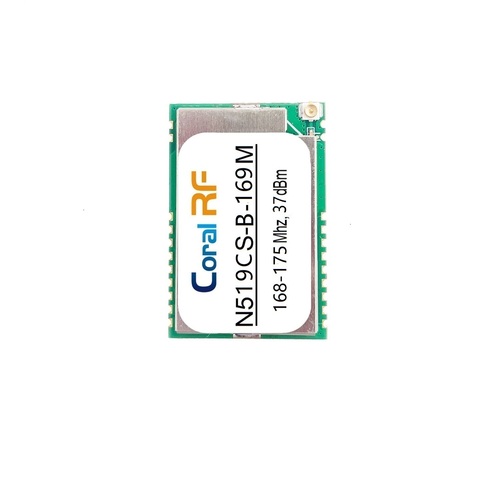

N519CS-169M	160–175 MHz	+37 dBm
N519CS-433M	410–480 MHz	+37 dBm

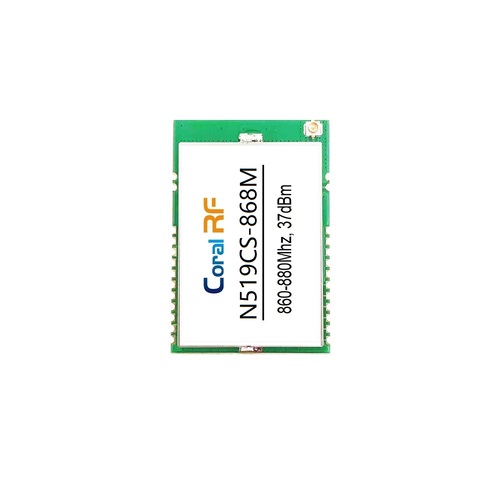

N519CS-868M	860–880 MHz	+37 dBm
N519CS-915M	910–960 MHz	+36 dBm

Request a quote | Order samples | Check distributor inventory

Design Resources

Get the documentation and tools you need to start developing with the N519CS.

Resource	Description	Link
📄 Datasheet	Complete specifications, electrical characteristics, and mechanical drawings for the N519CS module.	Download PDF
📘 CC1200 Technical Reference Manual	Detailed register map, programming guide, and RF design recommendations from Texas Instruments.	View Manual
🧪 Evaluation Board	Request the N519CS evaluation kit for rapid prototyping and range testing.	Request Board
💻 CC1200 SDK	Software development kit including drivers, example code, and application notes.	Download SDK
📞 Applications Engineering	Get technical support from our RF engineers for your integration questions.	Contact Us

Additional Design Support

Power Supply Design – At +37 dBm, the module draws 2A peaks. Your 5V supply must handle these transients. Read our power supply guide.

Antenna Selection – Range depends on antenna matching.

Thermal Management – Pulsed operation keeps heat manageable. For high duty cycles, consider airflow or heatsinking.

Regulatory Compliance – Designed to help meet FCC/ETSI standards; final certification depends on system integration. The CC1200 is suitable for systems targeting ETSI EN 300 220, FCC CFR47 Part 15, and ARIB standards .

For immediate questions: info@coralradio.com

Specifications subject to change. Actual performance depends on antenna, environment, and system design. Ensure compliance with local radio regulations before deployment.
