Some wireless links can't afford to fail. Pipeline pressure monitors in remote deserts, grid sensors in mountain valleys, perimeter alarms at critical facilities—they need to be heard, even when the signal has to travel 16 km or punch through dense foliage and concrete.

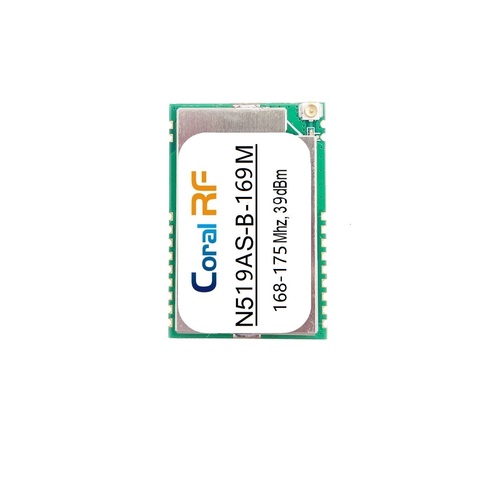

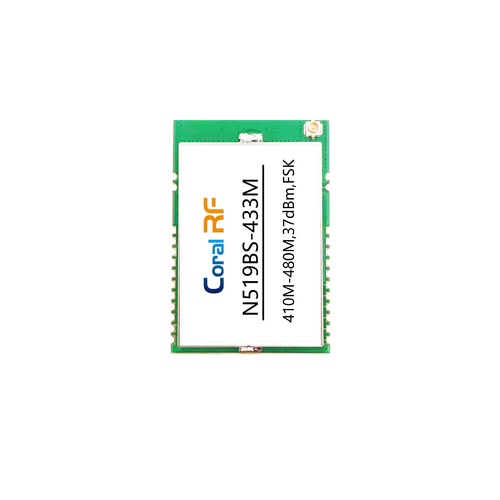

The N519AS is built for those links.

It delivers +37 dBm (5W) output power with -126 dBm sensitivity—a link budget that enables reliable communication beyond 16 km line-of-sight. That's enough reach to connect far-flung assets without repeaters, and enough margin to punch through interference and obstacles.

Built around the Texas Instruments CC1120 narrowband transceiver and enhanced with an external high-power PA and LNA, this module is engineered for applications where data loss is not an option:

Smart grid infrastructure
Oil & gas pipeline monitoring
Industrial SCADA
Perimeter security
Long-range telemetry

The CC1120 core provides exceptional blocking and selectivity, ensuring your packets get through even in congested spectrum environments. Dedicated TXEN, RXEN, and LANEN control pins give you precise hardware sequencing, while VTCXO support enables ultra-stable frequency reference for narrowband modes and regulatory compliance.

Available in 169 MHz, 433 MHz, 868 MHz, and 915 MHz variants—including the 169 MHz band specifically tailored for European and Chinese smart grid applications—the N519AS offers global deployment flexibility in a single 36×24 mm SMD footprint.

Why Choose the N519AS?

Feature	Benefit
+37 dBm (5W) output power	Reach assets 16+ km away without repeaters
-126 dBm sensitivity @ 1.2 kbps	Hear the weakest signals from network edges
TI CC1120 narrowband core	Superior blocking and selectivity in crowded spectrum
Dedicated TXEN, RXEN, LANEN pins	Precise power sequencing for battery-optimized designs
VTCXO support	±1 kHz frequency stability for narrowband compliance
Global band coverage	One design for 169/433/868/915 MHz deployments
-40°C to +85°C operation	Industrial reliability in harsh environments
SPI interface + programmable GPIOs	Full integration flexibility

Technical Specifications

Parameter	Specification
Core IC	TI CC1120 narrowband transceiver
Front-End	External PA + LNA
Frequency Bands	169 MHz (160–175), 433 MHz (410–480), 868 MHz (860–880), 915 MHz (910–960)
Max Output Power	+37 dBm (5W) typical
RX Sensitivity	-126 dBm @ 1.2 kbps
Data Rate	0.3 – 200 kbps (programmable)
Typical Range	Up to 16 km (LOS, 1.2 kbps, 3 dBi antenna)
Core Supply (VCC)	3.3V
PA Supply (VCCPA)	5.0V ±0.5V (needs 2A peak capability)
TX Current (peak)	2000 mA @ +37 dBm
RX Current	27 mA typical
Sleep Current	10 µA typical
Interface	SPI + TXEN, RXEN, LANEN control pins
GPIOs	3 programmable
Antenna Connection	50Ω RF pad / IPEX connector
Dimensions	36.0 × 24.0 × 3.0 mm
Operating Temperature	-40°C to +85°C

Pin Configuration

Pin	Name	Description
1, 4, 5, 10, 20	GND	Ground
2, 3	VCCPA	PA supply (5V, 2A peak capability required)
6	TXEN	Transmit enable (active high)
7	RXEN	Receive enable (active high)
8	LANEN	LNA enable (active high)
9	VCC	Core supply (3.3V)
11	VTCXO	TCXO voltage control / enable
12	RESET	Module reset (active low)
13, 14, 18	GPIO3/2/0	Programmable GPIOs
15, 16, 17	MOSI, SCK, MISO	SPI interface
19	NSS	SPI chip select (active low)
21	RF	50Ω RF I/O

Compare the CC1120 Family

All modules in this family are built around the TI CC1120 narrowband transceiver, offering different power levels to match your range requirements—from short-range sensors to critical infrastructure links.

Model	Frequency Bands	Output Power	Sensitivity @ 1.2 kbps	Form Factor	Best For
N511AS-B	169/433/868/915 MHz	+15 dBm	-122 dBm	SMD	Low‑power sensors, short range
N515AS-B	169/433 MHz	+26 dBm	-125 dBm	SMD	Medium‑range sensors
N516AS-B	868/915 MHz	+27 dBm	-124 dBm	SMD	Medium‑range sensors
N517AS	169/433/868/915 MHz	+30 dBm	-126 dBm	SMD	Long‑range end nodes
N518AS	169/433/868/915 MHz	+33 dBm	-126 dBm	SMD	Industrial gateways, extreme range
N519AS	169/433/868/915 MHz	+37 dBm	-126 dBm	SMD	SCADA, smart grid, critical infrastructure

📘 View full CC1120 product family — including module details, evaluation boards, and design resources.

📘 View full product family — including module details, evaluation boards, and design resources.

Compare with CC1125 Family

Need higher data rates or different features? Our CC1125-based modules offer similar power options with enhanced performance.

Model	Core IC	Output Power	Sensitivity	Key Difference
N519BS	CC1125	+37 dBm	-126 dBm	Enhanced blocking/selectivity

Target Applications

Smart Grid / AMI Concentrators – 169 MHz band for European and Chinese utility metering
Oil & Gas Pipeline Monitoring – Remote SCADA links in unpowered locations
Perimeter Security – Alarm reporting across large industrial sites
Agricultural Sensor Networks – Soil moisture, weather stations over thousands of hectares
Backhaul Links – Replace multiple gateways with one long-range connection
Water/Wastewater Treatment – Reliable telemetry for distributed infrastructure

Ordering Information

Order Code	Frequency	Output Power
N519AS-169M	160–175 MHz	+37 dBm
N519AS-433M	410–480 MHz	+37 dBm
N519AS-868M	860–880 MHz	+37 dBm
N519AS-915M	910–960 MHz	+37 dBm
