Ti CC1352R CC1190 CC2592 Radio module

        N628PA Radio module is a new product of Coral RF, the module based TI CC1352R, CC1190 and CC2592. For 868MHz, 915MHz up to 27dBm output power and down to -112dBm sensitivity. For 2.4Ghz, up to 22dBm output power and down to -102dBm sensitivity at 2400mhz. The part of the

N628PA module below 1G supports 6LoWPAN, Amazon Sidewalk, IEEE 802.15.4, Wi-SUN, Wireless M-Bus, Thread and so on. N628PA module 2.4G supports Bluetooth low energy, IEEE 802.15.4, Thread, Zigbee and so on.

The N628PA module is mainly for Internet of things, intelligent home, wireless meter reading, scientific research and medical treatment, and medium and long-distance wireless communication equipment. N628PA module leads most pins out of CC1352R for secondary development. N628PA (CC1352R) is suitable for free frequency band in EU and USA.


N628PA Module Master Chip Introduce

The CC1352R device is a multi protocol, multi band Sub-1GHz and 2.4GHz wireless microcontroller (MCU) that supports Thread Zigbee, Low power Bluetooth 5.3 IEEE 802.15.4g, Intelligent objects supporting IPv6 (6LoWPAN), mioty, Wi SUN, Amazon Sidewalk, proprietary systems (including TI 15.4 Stack for Sub-1GHz and 2.4GHz), and concurrent multi protocol implemented through Dynamic Multi Protocol Manager (DMM) drivers. This device is optimized for low-power wireless communication, with advanced security features and on-chip wireless (OAD) update functionality. It is used in building security systems HVAC, Long distance reliable communication can be achieved in the markets of smart meters, medical devices, wired networks, portable electronic products, home theaters and entertainment, as well as networked peripherals. The outstanding features of this device include:

  • Support secure key storage, device ID, and trusted functionality based on Arm TrustZone.

  • Multi band devices that support concurrent multi protocols for Sub-1GHz and 2.4GHz through DMM drivers.

  • The SimpleLink LOWPOWER F2 software development kit (SDK) provides very flexible protocol stack support.

  • With a low standby current of 0.98 µ A (fully SRAM maintained), it extends the battery life for wireless applications.

  • Supports industrial temperature, with a minimum standby current of 5 µ A at 85 ⁰ C.

  • Advanced sensing is achieved through a programmable, autonomous ultra-low power sensor controller CPU with fast wake up function. For example, the sensor controller can perform 1Hz ADC sampling when the system current is 1 µ A.

  • Low Soft Error Rate (SER) Time Base Fault (FIT) can extend the operating life without causing interference to the industrial market. The SRAM parity check function is always on to prevent damage caused by potential radiation events.

  • The software controlled dedicated radio controller (Arm Cortex-M0) provides flexible low-power RF transceiver functionality, supporting multiple physical layers and RF standards.


N628PA CC1352R Module Parameters

RF Interface

Parameter

Frequency

868MHz, 915MHz, 2.4ghz

Output Power

+27dBm at 868M/915M,

+22dBm at 2400M;

Sensitivity

-112dBm at 50kbps in 868M/915M,

-102dBm at 250kbps in 2400M;

Symbol Rate

0.3-4000kbps

Deviation

+/-10kHz

Distance

8000m at SUB G;

500m at 2.4G.


Hardware parameters

Value

Size

41 x 30 x 3mm

Antenna Interface

Sub G IPEX and stamp hole optional

2.4 G IPEX and PCB antenna optional

Communication Interface

UART, SPI

Package

SMD


Electrical Parameters

Typical

Volt

3.3V

Emission Current

500mA

Receiving Current

10mA

Sleep current

1uA

Working Temperature

-30℃--75℃

N628PA's CC1190 control Logic

IO

TX

RX

SLEEP

DIO28

1

0

0

DIO29

0

1

0

DIO30

1

1

0

N628PA's CC2592 control Logic

IO

TX

RX

SLEEP

DIO5

1

0

0

DIO6

0

1

0

DIO7

1

1

0


N628PA Pinout Description

Pin   Number

Function

Describe

1

RF


2

GND


3

NC


4

NC


5

NC


6

NC


7

NC


8

NC


9

NC


10

DIO8

MCU IO port

11

DIO9

MCU IO port

12

DIO10

MCU IO port

13

DIO11

MCU IO port

14

DIO12

MCU IO port

15

DIO13

MCU IO port

16

DIO14

MCU IO port

17

VCCPA

VCCPA

18

VCC

VCC

19

GND

GND

20

RESET

RESET

21

DIO15

MCU IO port

22

TMS

TMS

23

TCK

TCK

24

DIO16

MCU IO port

25

DIO17

MCU IO port

26

DIO18

MCU IO port

27

DIO19

MCU IO port

28

DIO20

MCU IO port

29

DIO21

MCU IO port

30

DIO22

MCU IO port

31

DIO23

MCU IO port

32

DIO24

MCU IO port

33

DIO25

MCU IO port

34

DIO26

MCU IO port

35

DIO27

MCU IO port

36

GND

MCU IO port

N628PA's Package Description

CC1352R CC1190 CC2592 Module Package

ISM Frequency band supported by N628PA module

770M band: 770 MHz to 780 MHz (China)

868M band: 868 MHz to 870 MHz (China, EU, USA), 888 MHz to 889 MHz (Australia)

915M band: 902 MHz to 928 MHz (USA)

2400M band: 2400MHz to 2500 MHz

Ordering information

N628PA-CC1352R-868M   CC1352R   CC1190   860-880MHz     +27dBm

N628PA-CC1352R-915M   CC1352R   CC1190   910-930MHz     +27dBm

D‍ownload

N628PA datasheet


How to used N628PA cc1352R Module‍ ?

1. N628PA CC1352R Module uart and DEBUG port circult

1) N628PA module UART port

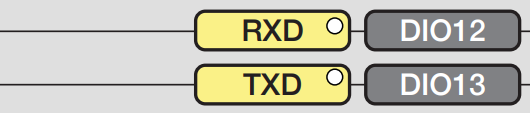

    DIO13-->TXD;    DIO12<--RXD;

N629PA UART port


2) N628PA module debug port

connect N628PA to XDS110

XDS110 connector

N628PA debug connector

3V3

VDD_EB

GND

GND

NRST

nRESET

TMS

JTAG_TMS

TCK

JTAG_TCK


2. N628PA CC13152R Dongle RF test

step 1:

connect N628PA to XDS110

step 2:

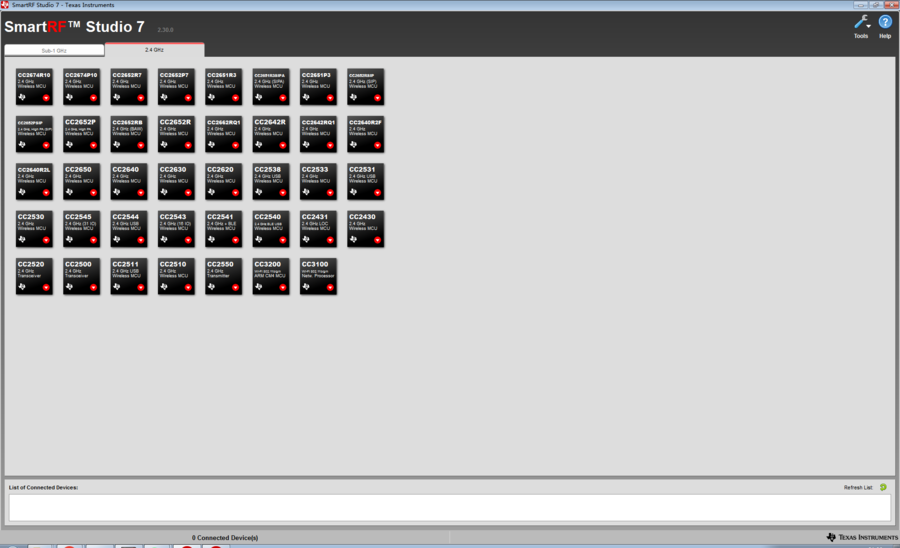

1) Open smart RF studio 7,

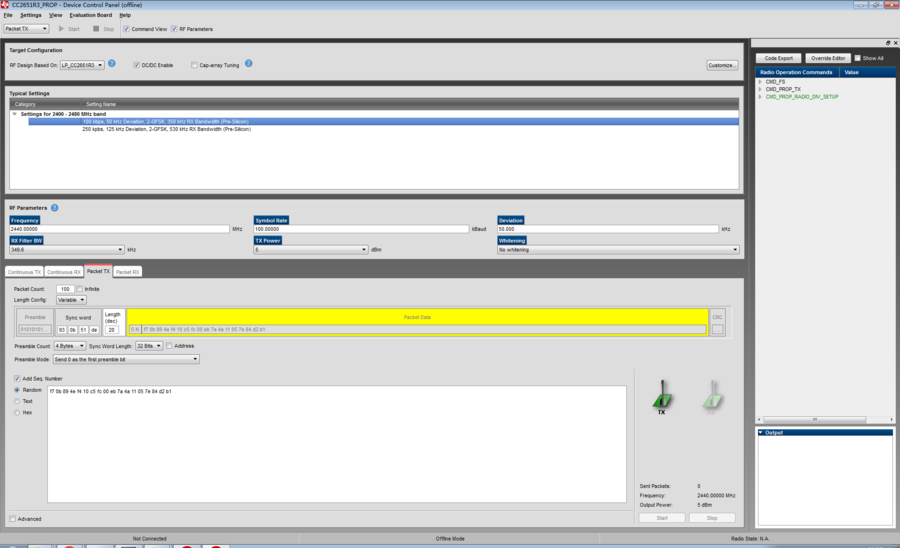

N628PA Open smart RF studio 7

2) Open CC1352R interface,

N628PA Open CC1352r interface

Then you can proceed with RF testing.

3. N628PA CC1352r module UART test

step 1:

Download the fireware to N628PA cc1352R Module

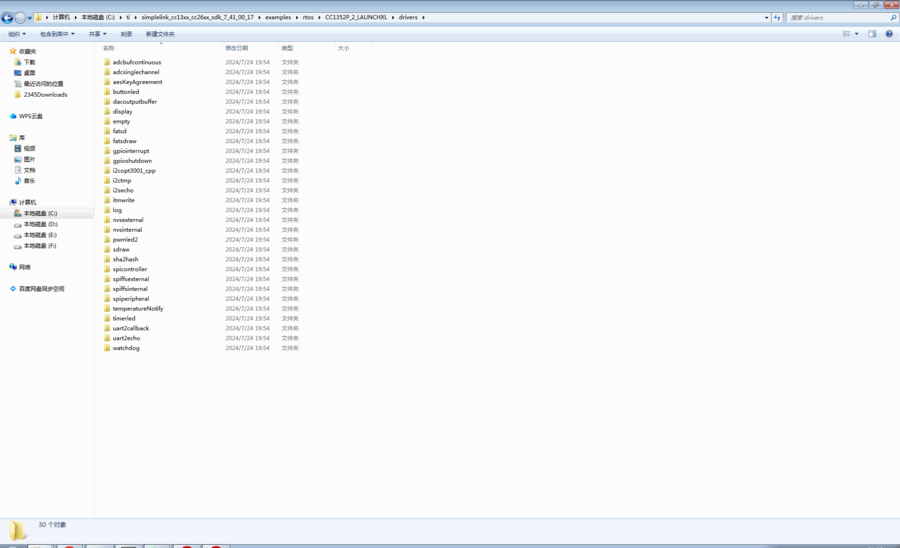

N628PA Download the fireware to CC1352R

step 2:

Connrct UART to USB device eg: CP2102 board.

step 3:

send the data from putty to VCP port, then can receive the same data from N628PA from Module.

‍‍
