CC1125 Module, +30dBm, N514FS

CC1125 Module, +30dBm, N514FS
Frequency : 169M,433M,868M,915M
Output Power : 30dBm
Port : UART, SPI
Brand : Coral RF
Modulation : FSK
Package : SMD
Model : N514FS
Price :
$10.00
Details

CC1125 module, radio module, narrowband module, 30dbm


Radio module based TI CC1125, PA, LNA, MCU.

N514FS CC1125 module PA, LNA, MCU. 169M, 433M, 868M 915Mhz narrowband. Up to 30dBm output power, and down to -126dBm sensitivity. AT command used.

N514FS is mainly for Internet of things, intelligent home, wireless meter reading, scientific research and medical treatment, and medium and long-distance wireless communication equipment. CC1125 module leads all pins out for secondary development. N514FS is suitable for free frequency band in EU and America.


RF Interface

Parameter

Introduce

Frequency

169M, 433M, 868M 915Mhz

Support ISM, narrowband

Output Power

+30dBm

The maximum power 1000mW

Sensitivity

-126dBm

1.2kbps

Symbol Rate

0.3-200kbps

Software programming control

Deviation

+/-1kHz

Antenna interface

Distance

15000m

In clear and open environment, the antenna gain

is 3 dBi, the height above the ground is 2.5 meters,

and the air speed is 1.2 kbps.


Hardware parameters

Value

Remarks

Size

42 x 24 x 3mm

-

Antenna Interface

IPEX, RF pin

-

Communication Interface

UART, SPI

Software programming, AT command

Package

SMD

-


Electrical Parameters

Minimum

Typical

Maximum

Remarks

Volt

1.8V

3.3V

3.9V


PA Volt

3V

3.6V

5V


Emission Current


1400mA


Instantaneous power consumption

Receiving Current


35mA


-

Sleep current


2uA


Software programming control

Working Temperature

-40℃


85℃

-


Pin Definition

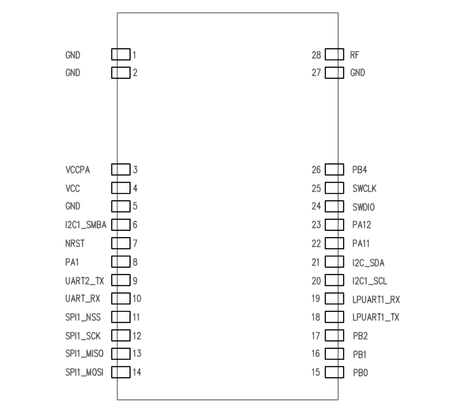

           CC1125 Module pin,30dBm,UART,RF Module,Narrowband,868MHz,PALNA

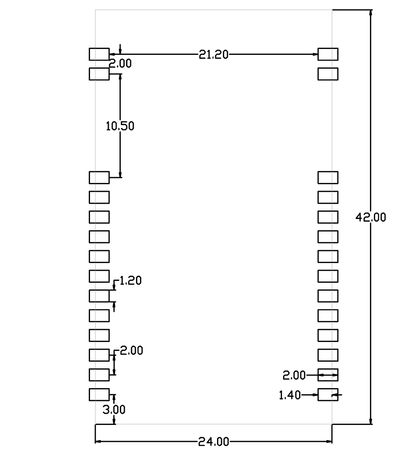

          CC1125 Module size,30dBm,UART,RF Module,Narrowband,868MHz,PALNA




Ordering information


N514FS-169M     CC1125, MCU     Narrowband, 30dBm, 160M - 175MHz

N514FS-433M     CC1125, MCU     Narrowband, 30dBm, 410M - 480MHz

N514FS-868M     CC1125, MCU     Narrowband, 30dBm, 860M - 880MHz

N514FS-915M     CC1125, MCU     Narrowband, 30dBm, 910M - 960MHz



Files download

N514FS datasheet
