5 Milliwatts ZigBee/BLE cc2531r3 Dongle

Issuing time:2025-01-06 19:27Author:Coral RF

5 Milliwatts ZigBee/BLE cc2651r3 Dongle

5 Milliwatts ZigBee/BLE CC2651R3 Dongle

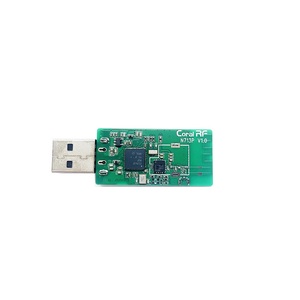

N732EP cc2531r3 Zigbee /BLE Dongle based TI cc2651r3 2.4 GHz wireless mcu and USB to uart chip, the Zigbee/BLE dongle designed for 2.4G band. It can be debug or program by customizer. The cc2531r3 dongle has +5 dBm output power and the sensitivity down to -100 dBm at 250 kbps. The dongle support Zigbee 3.0 ,BLE 5.2 and thread and so on.

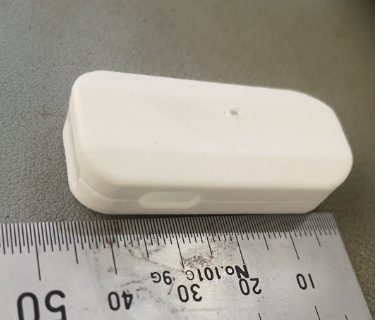

The CC2651R3 Dongle has a small private USB shell, Integrated buttons and dual color LED 3528, CC2651R3, cp2102 and pcb antenna, with the specialized custom shell, it reduced a lot of development troubles, Only the most software programming is needed to quickly push it to the market. Suitable for 802.15.4 edge gateways, sniffers, packet catchers, etc. The USB shell is compact and exquisite, suitable for personal or commercial use. Can be OEM/ODM. The length, width, and height of the shell are 45 x 19 x 8 mm. The color of the shell and buttons can be customized.

N732EP dongle hardware is designed for maximum range, 100m + Range (Low rate and Line of Sight).

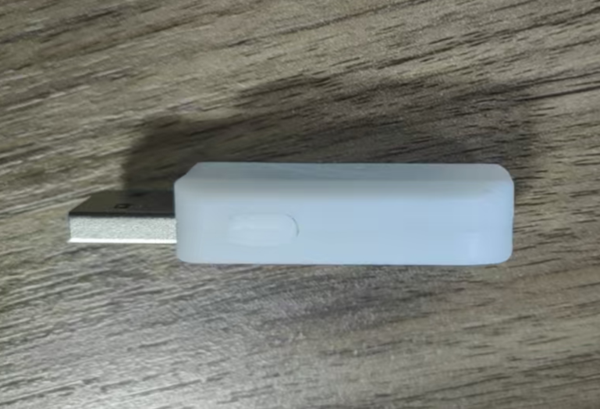

The N732EP Private Shell By Coral RF

The N732EP Private Shell By Coral RFThe N732EP Private Shell By Coral RF

cc2651R3 Features

• Powerful 48-MHz Arm® Cortex®-M4 processor

• 352KB flash program memory

• 32KB of ultra-low leakage SRAM

• 8KB of Cache SRAM (Alternatively available as general-purpose RAM)

• Programmable radio includes support for 2-(G)FSK, 4-(G)FSK, MSK, Bluetooth® 5.2 Low Energy, IEEE 802.15.4 PHY and MAC

• Supports over-the-air upgrade (OTA)

N732EP cc2651r3 Dongle Wireless protocols

  • Zigbee®

  • Bluetooth® 5.2 Low Energy

  • SimpleLink™ TI 15.4-stack

  • Proprietary systems

N732EP cc2651r3 Dongle radio

  • -104dBm for Bluetooth® Low Energy 125kbps

  • -100dBm for IEEE 802.15.4-2006 2.4 GHz (OQPSK DSSS1:8, 250 kbps)

N732EP cc2651R3 Dongle UART baud

  • UART baud up to 3Mbps.

N732EP cc2651r3 Dongle Parameters

Protocols

IEEE 802.15.4, 6LoWPAN, ZigBee

Frequency bands (MHz)

2400-2500

TX power (Max) (dBm)

5

RAM (KB)

32

CPU core

Arm® Cortex®-M4

Peripherals

USB, LED, KEY

RX current (lowest) (mA)

15 mA

Data rate (Max) (kbps)

0.3 - 2118 kbps

Operating temperature range (°C)

-30 to 75 °C

Package

USB 2.0

Size

37x17x7mm

Antenna Interface

PCB antenna, IPEX


How to used N732EP Dongle‍ ?

1. N732EP cc2651r3 Dongle's KEY, LED, DEBUG, SWITCH port circult

1) KEY circult

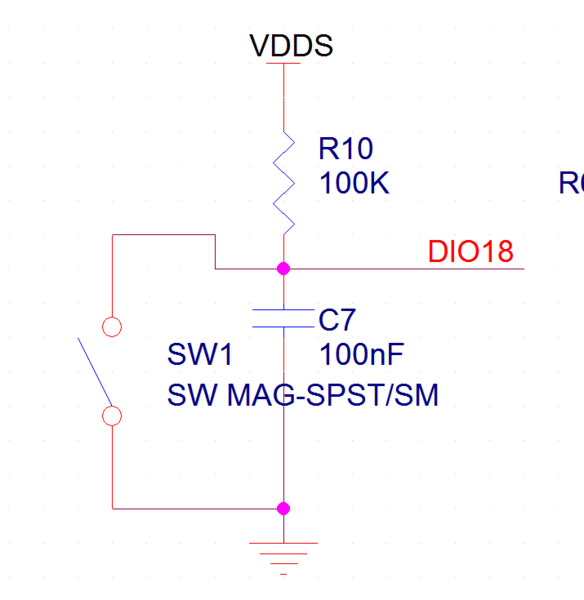

N732EP Dongle key circult

2) LED circult

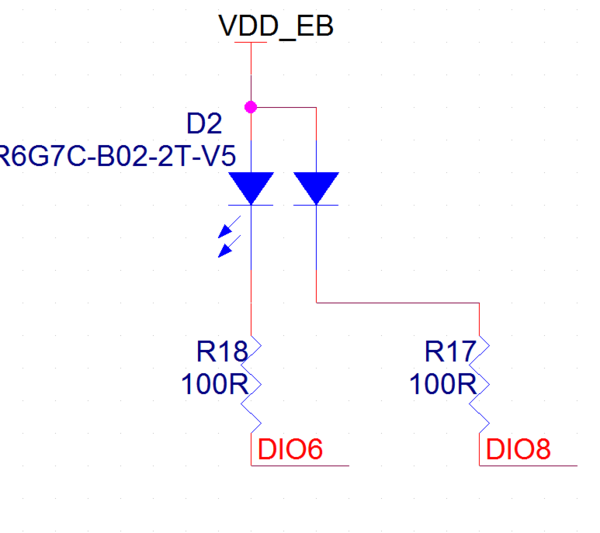

N732EP Dongle LED circult

3) Debug Port

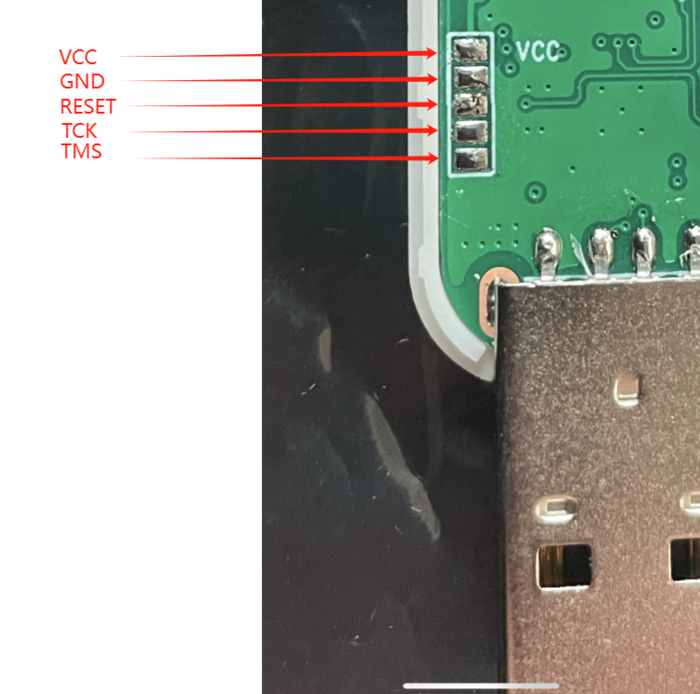

N732EP Dongle Debug Port

4, UART port

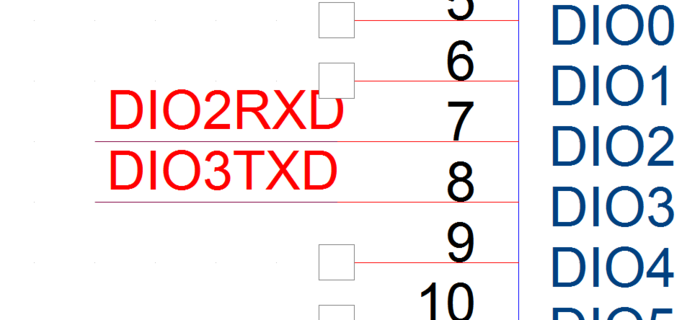

N732EP UART port circult


2. N732EP cc2651r3 Dongle RF test

step 1:

connect N732EP to XDS110

XDS110 connector

N732EP connector

3V3

VDD_EB

GND

GND

NRST

nRESET

TMS

JTAG_TMS

TCK

JTAG_TCK


step 2:

1) Open smart RF studio 7,

N732EP Open smart RF studio 7

2) Open cc2651r3 interface,

N732EP Open cc2651r3 interface

Then you can proceed with RF testing.

3. N732EP cc2651r3 Dongle UART test

step 1:

Download the fireware to N732EP cc2651r3 Dongle

N732EP Download the fireware to cc2651r3

step 2:

install CP2102 VCP driver in computer

step 3:

send the data from putty, then can receive the same data from N732EP dongle.

N732EP cc2651r3 Dongle Download

CC2651R3 datasheet‍‍‍

N732EP datasheet

CP2102 DRIVER‍
