5 Milliwatts ZigBee/BLE cc2650 Dongle

Issuing time:2025-01-06 19:55Author:Coral RF

5 Milliwatts ZigBee/BLE cc2650 Dongle

5 Milliwatts ZigBee/BLE CC2650 Dongle

N732HP cc2650 Zigbee /BLE Dongle based TI cc2650 2.4 GHz wireless mcu and USB to uart chip, the Zigbee/BLE dongle designed for 2.4G band. It can be debug or program by customizer. The cc2650 dongle has +5 dBm output power and the sensitivity down to -100 dBm at 250k bps. The dongle support Zigbee, BLE 5.2 and thread and so on.

The CC2650 Dongle has a small private USB shell, Integrated buttons and dual color LED 3528, CC2650, cp2102 and pcb antenna, with the specialized custom shell, it reduced a lot of development troubles, Only the most software programming is needed to quickly push it to the market. Suitable for 802.15.4 edge gateways, sniffers, packet catchers, etc. The USB shell is compact and exquisite, suitable for personal or commercial use. Can be OEM/ODM. The length, width, and height of the shell are 45 x 19 x 8 mm. The color of the shell and buttons can be customized.

N732HP dongle hardware is designed for maximum range, 100m + Range (Low rate and Line of Sight).

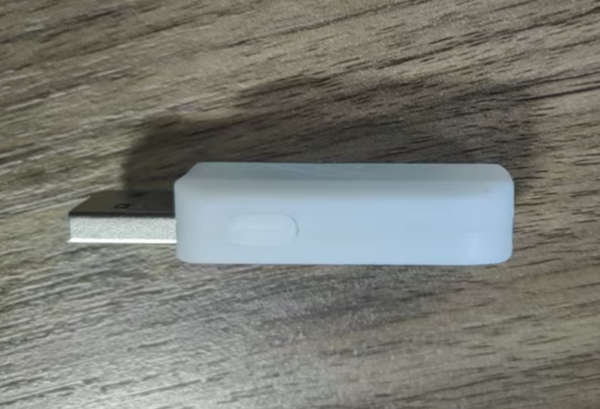

The N732HP Private Shell By Coral RF

The N732HP Private Shell By Coral RF

N732HP dongle Master chip cc2650 Features

  • Powerful ARM® Cortex®-M3

  • EEMBC CoreMark® Score: 142

  • Up to 48-MHz Clock Speed

  • 128KB of In-System Programmable Flash

  • 8KB of SRAM for Cache

  • 20KB of Ultralow-Leakage SRAM

  • 2-Pin cJTAG and JTAG Debugging

  • Supports Over-The-Air Upgrade (OTA)

N732HP cc2650 Dongle Wireless protocols

  • Bluetooth® 4.2 Low Energy

  • 6LoWPAN

  • Proprietary Systems

N732HP cc2650 Dongle radio

  • -97dBm for Bluetooth 1Mbps

  • -81dBm for Bluetooth 5Mbps

  • -100dBm for IEEE 802.15.4 (Offset Q-PSK DSSS, 250 kbps)

N732HP cc2650 Dongle UART baud

  • UART baud up to 3Mbps.

N732HP cc2650 Dongle Parameters

Protocols

IEEE 802.15.4, 6LoWPAN, ZigBee

Frequency bands (MHz)

2400-2480

TX power (Max) (dBm)

5

RAM (KB)

20

CPU core

Arm® Cortex®-M3

Peripherals

USB, LED, KEY

RX current (lowest) (mA)

15 mA

Data rate (Max) (kbps)

2000 kbps

Operating temperature range (°C)

-30 to 75 °C

Package

USB 2.0

Shell Size

45 x 19 x 8 mm

PCB Size

37 x 17 x 7 mm

Antenna Interface

PCB antenna, IPEX


How to used N732HP Dongle ?

1. N732HP cc2650 Dongle's KEY, LED, DEBUG, SWITCH port circult

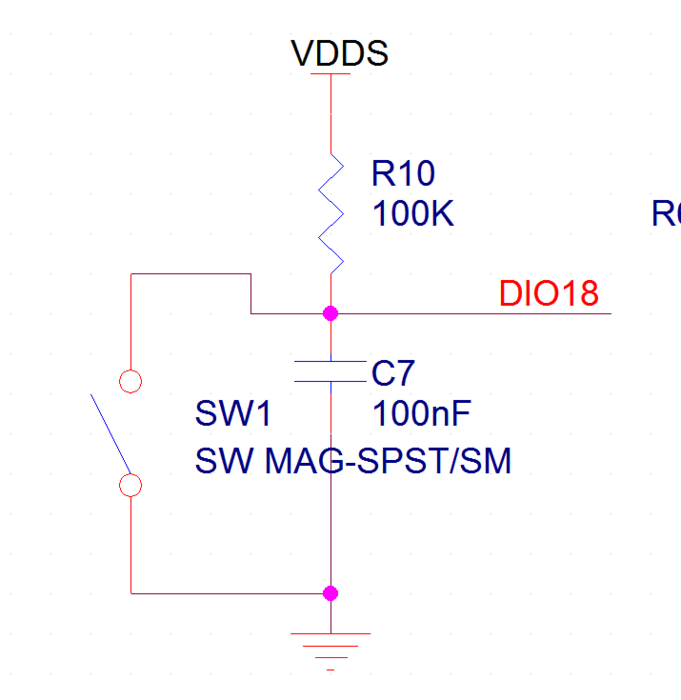

1) KEY circult

N732HP Dongle key circult

2) LED circult

N732HP Dongle LED circult

3) Debug Port

N732HP Dongle Debug Port

4, UART port

N732HP UART port circult


2. N732HP cc2650 Dongle RF test

step 1:

connect N732HP to XDS110

XDS110 connector

N732HP connector

3V3

VDD_EB

GND

GND

NRST

nRESET

TMS

JTAG_TMS

TCK

JTAG_TCK


step 2:

1) Open smart RF studio 7,

N732HP Open smart RF studio 7

2) Open cc2650 interface,

N732HP Open cc2650 interface

Then you can proceed with RF testing.

3. N732HP cc2650 Dongle UART test

step 1:

Download the fireware to cc2650

N732HP Download the fireware to cc2650

step 2:

install CP2102 driver

step 3:

send the data from putty, then can receive data from N732HP dongle.

N732HP cc2650 Dongle Download

CC2650 datasheet‍‍‍

N732HP datasheet

CP2102 DRIVER‍
