5 Milliwatts ZigBee/BLE CC2652R7 Dongle

Issuing time:2025-01-06 19:26Author:Coral RF

5 Milliwatts ZigBee/BLE CC2652R7 Dongle

5 Milliwatts ZigBee/BLE CC2652R7 Dongle

N732BP CC2652R7 Zigbee /BLE Dongle based TI CC2652R7 2.4 GHz wireless mcu and USB to uart chip, the Zigbee/BLE dongle designed for 2.4G band. It can be debug or program by customizer. The CC2652R7 dongle has +5 dBm output power and the sensitivity down to -99 dBm at 250 kbps. The dongle support Zigbee 3.0 ,BLE 5.2 and thread and so on.

The N732BP CC2652R7 Dongle has a small private USB shell, Integrated buttons and dual color LED 3528, CC2652r7, cp2102 and pcb antenna, with the specialized custom shell, it reduced a lot of development troubles, Only the most software programming is needed to quickly push it to the market. Suitable for 802.15.4 edge gateways, sniffers, packet catchers, etc. The USB shell is compact and exquisite, suitable for personal or commercial use. Can be OEM/ODM. The length, width, and height of the shell are 45 x 19 x 8 mm. The color of the shell and buttons can be customized.

N732BP ZIGBEE/BLE dongle hardware is designed for maximum range, 100m + Range (Low rate and Line of Sight).

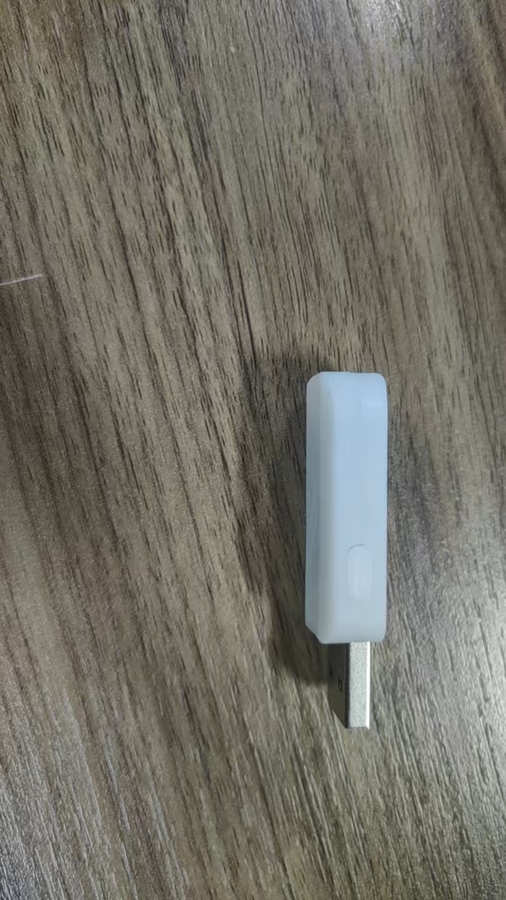

The N732BP Private Shell By Coral RF

The N732BP Private Shell By Coral RF

cc2652R7 Features

  • Powerful 48-MHz Arm® Cortex®-M4F processor

  • 704KB flash program memory

  • 256KB of ROM for protocols and library functions

  • 8KB of cache SRAM

  • 144KB of ultra-low leakage SRAM with parity for high-reliability operation

  • Dynamic multiprotocol manager (DMM) driver

  • Programmable radio includes support for 2-(G)FSK, 4-(G)FSK, MSK, Bluetooth® 5.2 Low Energy, IEEE 802.15.4 PHY and MAC

  • Supports over-the-air upgrade (OTA)

N732BP CC2652R7 Wireless protocols

  • Thread, Zigbee®, Matter

  • Bluetooth® 5.2 Low Energy

  • SimpleLink™ TI 15.4-stack

  • 6LoWPAN

  • Proprietary systems

N732BP CC2652R7 Dongle radio

  • -104dBm for Bluetooth® Low Energy 125kbps

  • -99dBm for Zigbee and Thread - IEEE 802.15.4-2006 2.4 GHz (OQPSK DSSS1:8, 250 kbps)

N732BP CC2652R7 Dongle UART baud

  • UART baud up to 3Mbps.

N732BP CC2652R7 Dongle Parameters

Protocols

IEEE 802.15.4, 6LoWPAN, ZigBee

Frequency bands (MHz)

2400-2480

TX power (Max) (dBm)

5

RAM (KB)

256

CPU core

Arm® Cortex®-M4F

Peripherals

USB, LED, KEY

RX current (lowest) (mA)

15 mA

Data rate (Max) (kbps)

0.3 - 2118 kbps

Operating temperature range (°C)

-30 to 75 °C

Package

USB 2.0

Size

37x17x7mm

Antenna Interface

PCB antenna, IPEX

How to used N732BP Dongle‍ ?

1. N732BP ZIGBEE/BLE dongle KEY, LED, DEBUG and UART circult

1) KEY circult

N732BP Dongle key circult

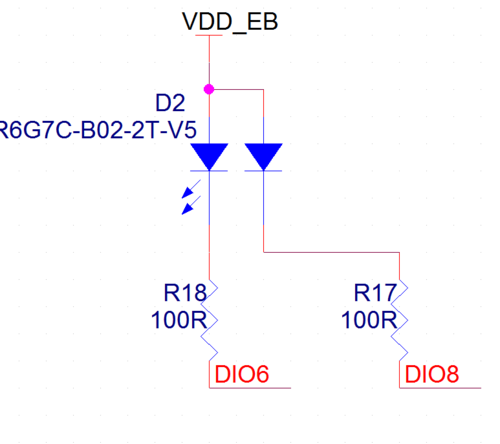

2) LED circult

N732BP Dongle LED circult

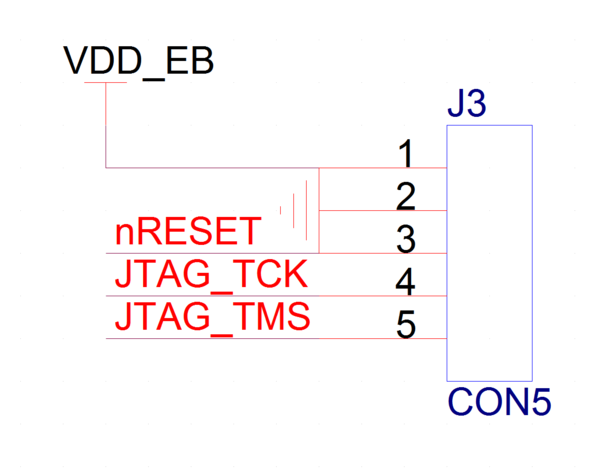

3) Debug Port

N732BP Dongle Debug Port

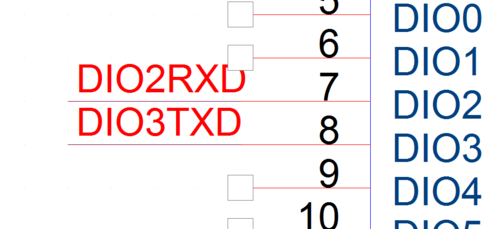

4, UART port

N732BP UART port circult


2. How to test N732BP ZIGBEE/BLE dongle RF

step 1:

connect N732BP to XDS110

XDS110 connector

N732BP connector

3V3

VDD_EB

GND

GND

NRST

nRESET

TMS

JTAG_TMS

TCK

JTAG_TCK


step 2:

1) Open smart RF studio 7,

N732BP Open smart RF studio 7

2) Open CC2652R7 interface,

N732BP Open CC2652R7 interface

Then you can proceed with RF testing.

3. How to test N732BP ZIGBEE/BLE dongle's UART

step 1:

Download the fireware to N732BP ZIGBEE/BLE dongle's CC2652R7

N732BP Download the fireware to CC2652R7

step 2:

install CP2102 driver

step 3:

send the data from putty, then can receive data from N732BP dongle.

Download

CC2652R7 datasheet‍‍‍

N732BP datasheet

CP2102 DRIVER‍
