20 Milliwatts CC1312r FSK Radio Dongle

N534BP CC1312r FSK radio Dongle based TI CC1312r SUB GHz wireless mcu, and USB to uart chip, the FSK radio dongle designed for 169M, 433M, 868M, 915M and 1200Mhz band. It can be debug or program by customizer. The CC1312 wireless dongle has +14 dBm output power and the sensitivity down to -110 dBm at 50 kbps. The dongle support IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), MIOTY, Wireless M-Bus, Wi-

SUN, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4 stack (Sub-1 GHz), and dynamic multiprotocol manager (DMM) driver and so on.

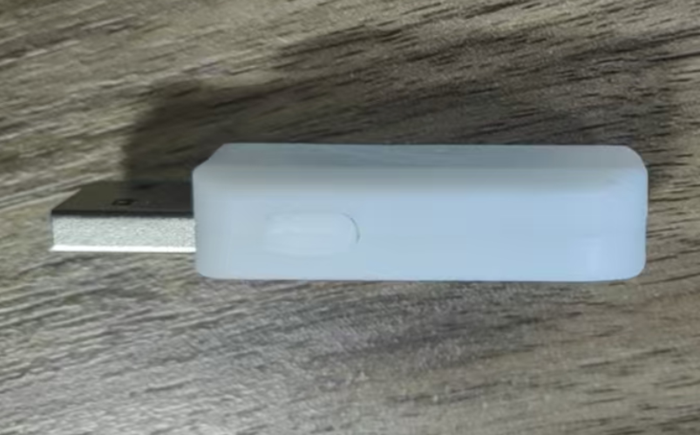

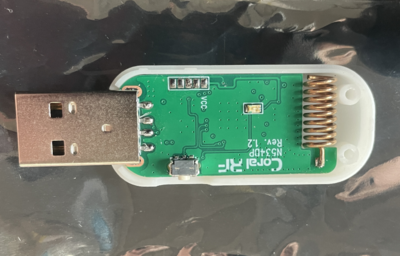

The CC1312 Dongle has a small private USB shell, Integrated buttons and dual color LED 3528, CC1312r , cp2102 and pcb antenna, with the specialized custom shell, it reduced a lot of development troubles, Only the most software programming is needed to quickly push it to the market. Suitable for 802.15.4 edge gateways, sniffers, packet catchers, etc. The USB shell is compact and exquisite, suitable for personal or commercial use. Can be OEM/ODM. The length, width, and height of the shell are 45 x 19 x 8 mm. The color of the shell and buttons can be customized.

N534BP FSK radio dongle hardware is designed for maximum range, 1000m + Range (Low rate and Line of Sight).

The N534BP Private Shell By Coral RF

N534BP Master Chip CC1312r Features

• Powerful 48MHz Arm Cortex-M33 processor with TrustZone

• FPU and DSP extension

• 352kB flash program memory

• 8kB of cache SRAM

• 80kB of ultra-low leakage SRAM with parity for high-reliability operation­32kB of additional SRAM if parity is disabled

• Dynamic multiprotocol manager (DMM) driver

• Supports over-the-air update (OTA)

N534BP CC1312r Dongle Wireless protocols

• Wi-SUN®

• mioty®

• Amazon Sidewalk

• Wireless M-Bus

• SimpleLink™ TI 15.4-stack

• Proprietary systems

N534BP CC1312r Dongle radio performance

• -110dBm sensitivity at 50kbps

• up to 14dBm output power at 5V

N534BP CC1312r Dongle UART baud

• UART baud up to 3Mbps.

N534BP CC1312r Dongle Parameters

How to used N534BP cc1312 Dongle ?

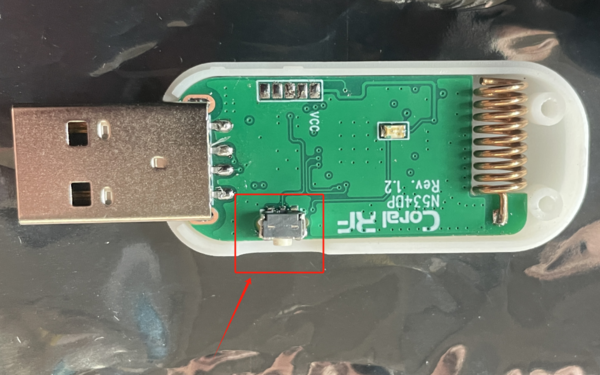

1. N534BP cc1312 dongle KEY, LED, DEBUG port circult

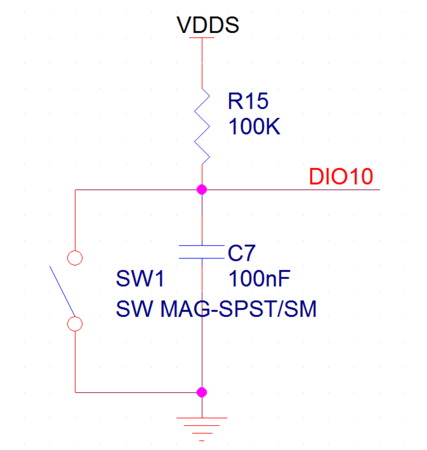

1) N534BP dongle KEY circult

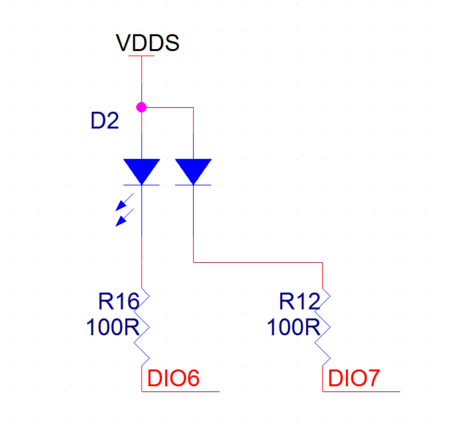

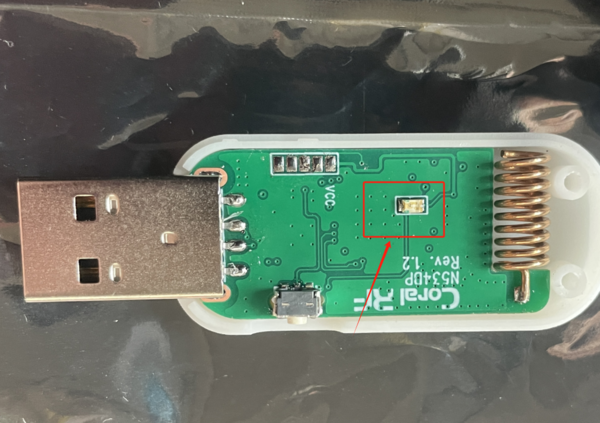

2) N534BP dongle LED circult

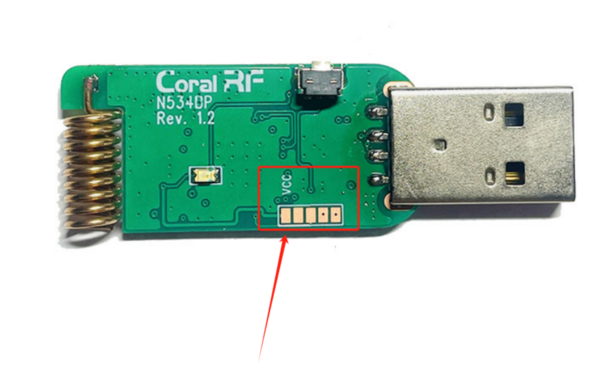

3) N534BP dongle Debug Port

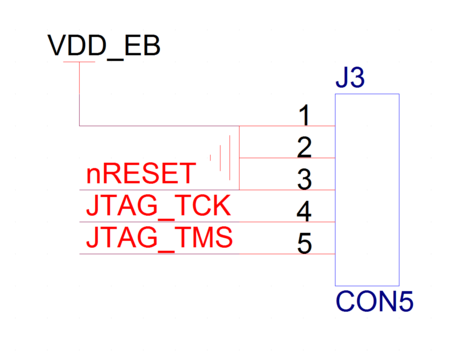

Note: for XDS110V3, only TCK and TMS used. For jtag, please view the guider of CC1312r.

4) N534BP dongle UART port

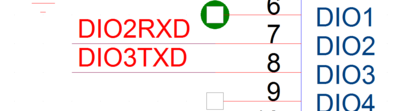

    DIO3-->TXD;    DIO2<--RXD;

2. N534BP CC1312 Dongle RF test

step 1:

connect N534BP to XDS110

step 2:

1) Open smart RF studio 7,

2) Open CC1312r interface,

Then you can proceed with RF testing.

3. N534BP CC1312r Dongle UART test

step 1:

Download the fireware to N534BP cc1312 Dongle

step 2:

install CP2102 driver in your computer,secect VCP port.

step 3:

send the data from putty to VCP port, then can receive the same data from N534BP from dongle.

N534CP cc1312 Dongle Download

CC1312R datasheet

N7534BP datasheet

CP2102 DRIVER‍
