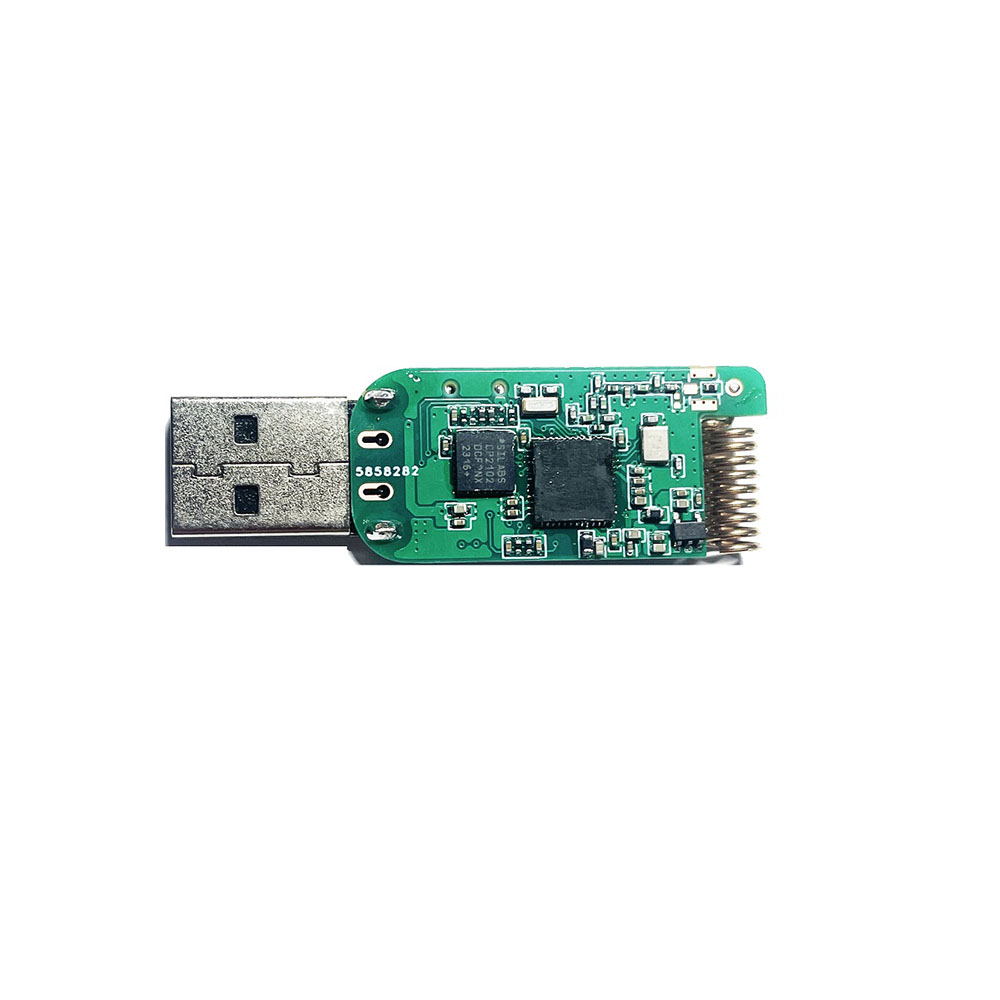

N538EP High-Performance Sub-1GHz USB Dongle Adapter(433MHz Model)
Product Overview
The N538EP is a versatile, high-performance USB radio dongle designed as a universal development and testing platform for key Sub-1GHz ISM bands. This model is optimized for the 433 MHz band. It integrates the advanced Texas Instruments CC1314R10 wireless microcontroller—a leader in multi-protocol support—with an efficient Power Amplifier (PA) to deliver a robust +24 dBm output. Enhanced by a high-stability TCXO and industrial-grade construction, this dongle as an ultimate plug-and-play tool for developing, prototyping, and validating IoT, smart utility, and industrial wireless solutions in the 433 MHz spectrum.
Key Features & Benefits
✅ Multi-Protocol Flexibility on a Scalable Platform: Leveraging the multi-protocol CC1314R10, this dongle is a perfect development platform for the 433 MHz band. The common hardware design supports variant models covering other key frequencies (e.g., 868, 915 MHz), offering a unified development experience across protocols like Wireless M-Bus, Wi-SUN, 6LoWPAN, and proprietary systems via TI's SDK.
✅ High-Power, Reliable RF Performance: +24 dBm transmit power and excellent sensitivity ensure strong, reliable communication links over distances up to 1500 meters, overcoming common range limitations in field deployments.
✅ Carrier-Grade Frequency Stability: Integrated Temperature-Compensated Crystal Oscillator (TCXO) provides precise frequency control (±1 kHz), which is critical for timing-sensitive protocols and dense network deployments.
✅ Industrial Robustness: Built to operate reliably in harsh environments with an extended temperature range of -40°C to +85°C and a professional 4-layer PCB design.
✅ Complete, Ready-to-Use Package: Comes with a user-programmable button, status LED, integrated spring antenna (plus IPEX connector), and debug access. Presents as a standard Virtual COM Port over USB for immediate use.
✅ Future-Proof Development Platform: The powerful CC1314R10 offers ample processing power and memory to run complex protocol stacks, making it ideal for developing sophisticated gateways and network managers.
Target Applications
Multi-Protocol Gateway Development: Prototyping hubs for Wi-SUN, Wireless M-Bus, or proprietary networks across different frequency regions.
Smart Utility Metering (AMI): Development tool for next-generation smart water, gas, and electricity meters operating in the 433 MHz band.
Industrial IoT Field Tester:
Research & Advanced Prototyping: A versatile platform for academic and industrial research into LPWAN technologies and multi-band systems.
Technical Specifications
Ordering Information
| Model | Core IC | Target Frequency Band | Output Power |
|---|
| N538EP-CC1314R10-433M | CC1314R10 + PA | 433 MHz (Programmable within 410 – 510 MHz) | +24 dBm |
Why Choose the N538EP Dongle adapter?
The N538EP consolidates high performance, multi-protocol capability, and industrial reliability into one robust tool. It dramatically accelerates the development cycle for 433 MHz IoT products, allowing you to focus on application logic rather than RF complexity. As part of a unified hardware family, it enables a seamless path to evaluating solutions for other frequency bands.
Resources & Next Steps
Your Universal Passport to Sub-1GHz Innovation.
