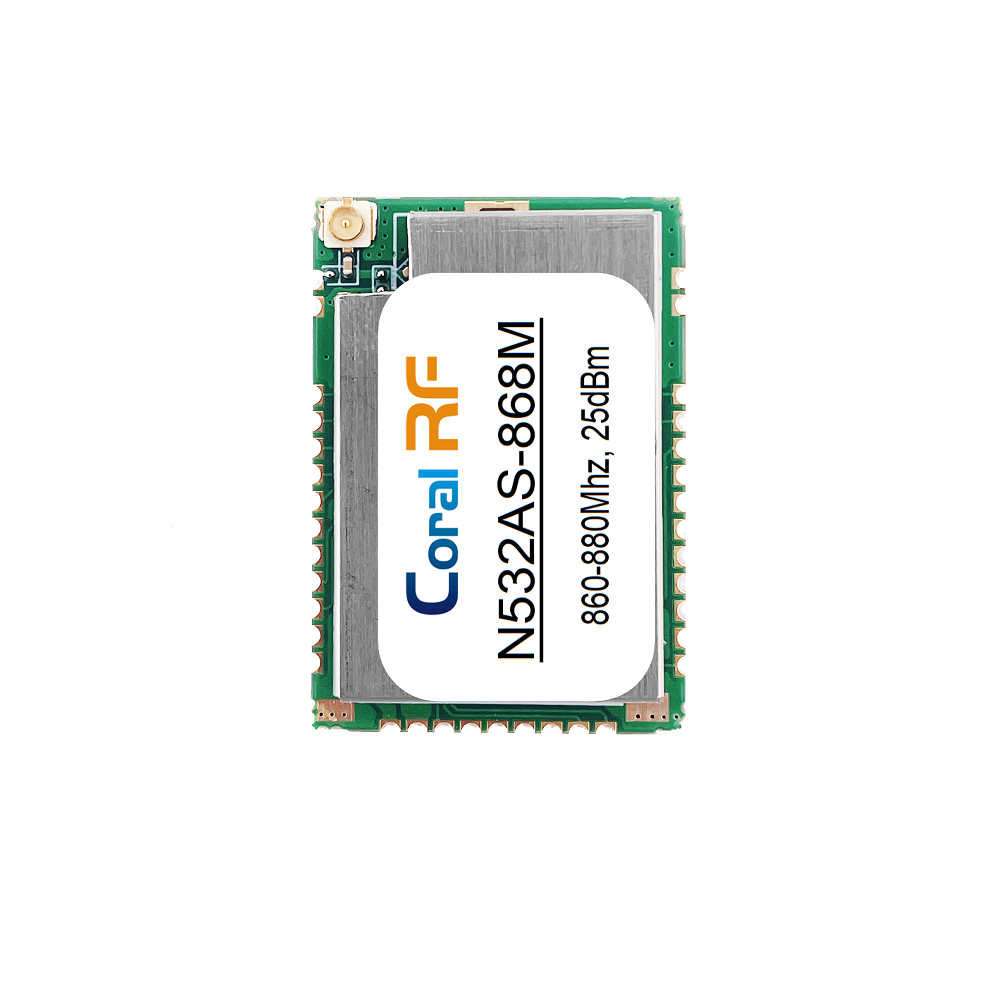

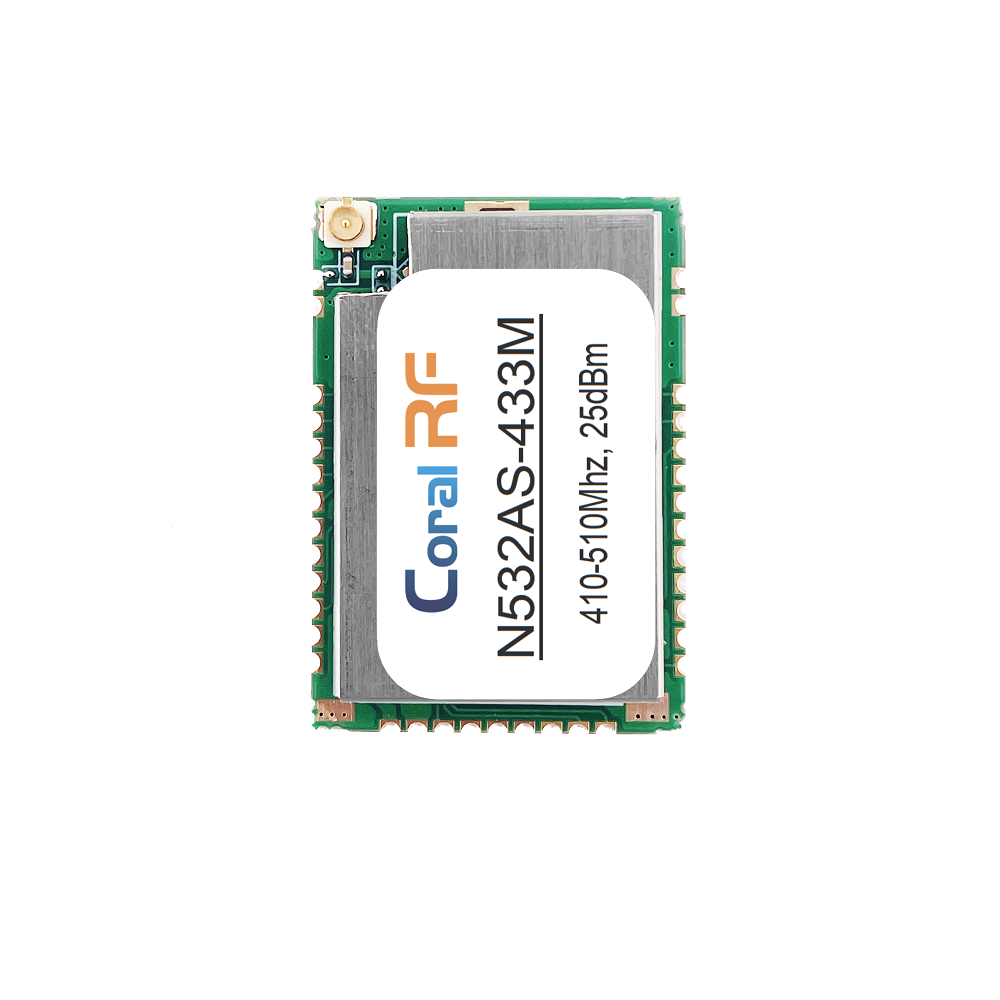

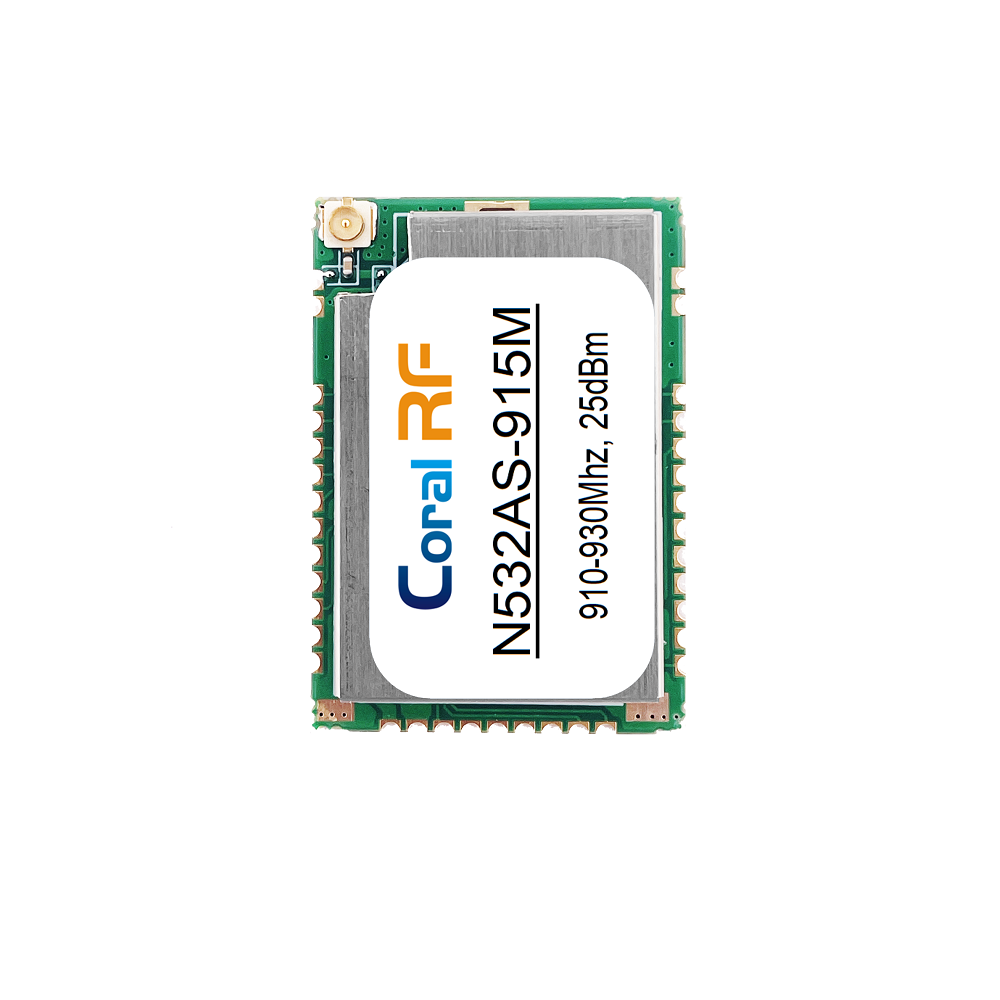

N532AS module integrated TI CC1310F128 chip and PA, suitable for 433M, 868M and 915MHz band. CC1310 module has the characteristics of low cost, low power consumption and small size. The module is designed with 4-layer board, with excellent impedance matching and anti-interference. The module is mainly for IoT, intelligent home, wireless meter reading, scientific research and medical treatment, and medium and long-distance wireless communication equipment.

N532AS module leads all pins out for secondary development.

N532AS Module Support Wireless protocols

IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), MIOTY®, Wireless M-Bus, WiSUN®, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4 stack (Sub-1 GHz), and dynamic multiprotocol manager (DMM)driver.

N532AS module (CC1310) is suitable for free frequency band in EU.

Category	Parameter	Specification / Value
RF Interface	Frequency	433 MHz, 868 MHz, 915 MHz
	Output Power	+25 dBm (Condition: VCC = 3V, VCCPA = 5V)
	Sensitivity	-124 dBm
	Symbol Rate	0.3 - 4000 kbps
	Deviation	±10 kHz
	Transmission Distance	2000 m
Hardware Parameters	Module Size	30 x 21 x 3 mm
	Antenna Interface	IPEX connector, Stamp hole (for PCB antenna)
	Communication Interface	UART, SPI
	Package Type	SMD (Surface Mount Device)
Electrical Parameters	CC1310 Supply Voltage (Min / Typ / Max)	2.5V / 3.3V / 3.6V
	PA Supply Voltage (Min / Typ / Max)	3V / 5V / 6V
	TX Current (Emission)	200 mA
	RX Current (Receiving)	6.9 mA
	Sleep Current	1 µA
	Operating Temperature	-30°C to +75°C

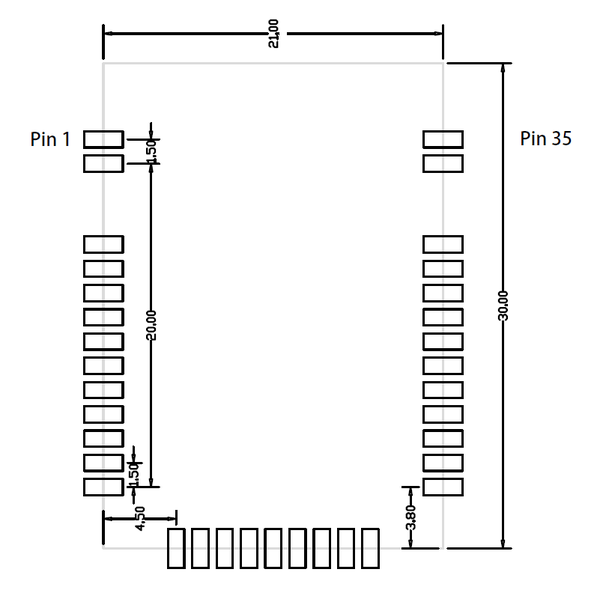

N532AS module pin fuction

Pin Num.	Dscript	Fuction	Pin Num.	Dscript	Fuction
1	RF	RF pin	19	DIO14	I/O
2	GND	GND	20	DIO15	I/O
3	DIO1	I/O	21	TMS	jtag
4	DIO2	I/O	22	TCK	jtag
5	DIO3	I/O	23	RESET	reset pin
6	DIO4	I/O	24	DIO16	I/O
7	DIO5	I/O	25	DIO17	I/O
8	DIO6	I/O	26	DIO18	I/O
9	DIO7	I/O	27	DIO19	I/O
10	DIO8	I/O	28	DIO20	I/O
11	DIO9	I/O	29	DIO21	I/O
12	DIO10	I/O	30	DIO22	I/O
13	VCCPA	PA power	31	DIO23	I/O
14	VCC	MCU power	32	DIO24	I/O
15	GND	GND	33	DIO25	I/O
16	DIO11	I/O	34	GND	GND
17	DIO12	I/O	35	GND	GND
18	DIO13	I/O
