CC1310 Module, +14dBm, N530AS

Price:
$4.50
Frequency: 433M,868M,915MHz
Output Power: +14 dBm
Port: UART, SPI
Size: 23x18x3mm
Brand: Coral RF
Modulation: FSK
Package: SMD
Model: N530AS-868M
Details

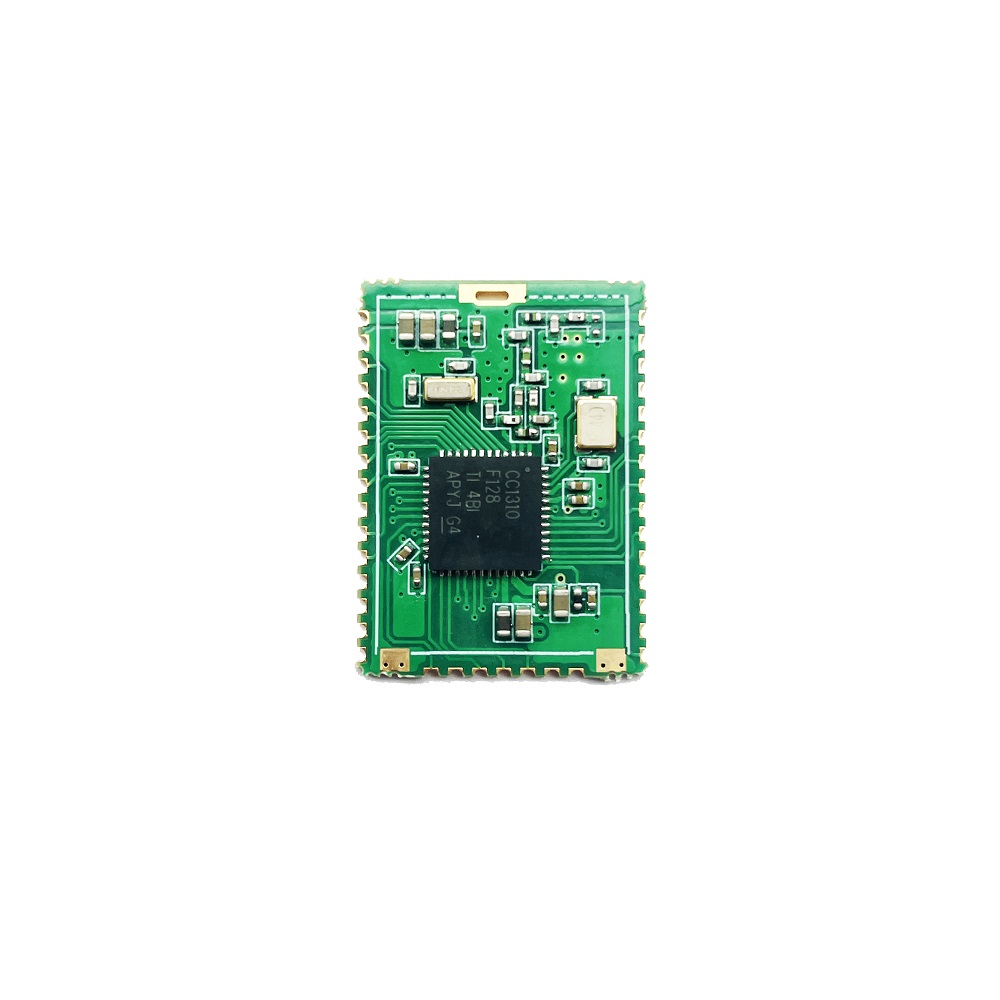

Radio module based TI CC1310 transceiver chip.

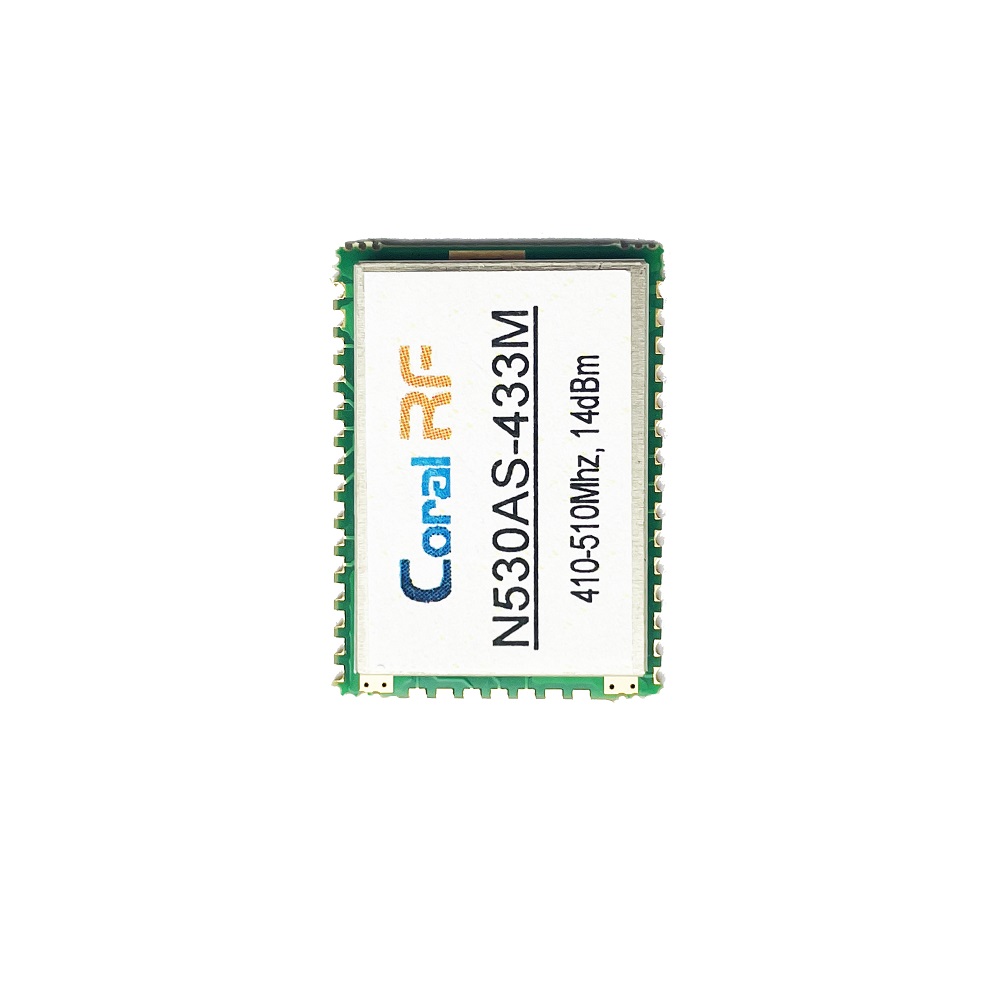

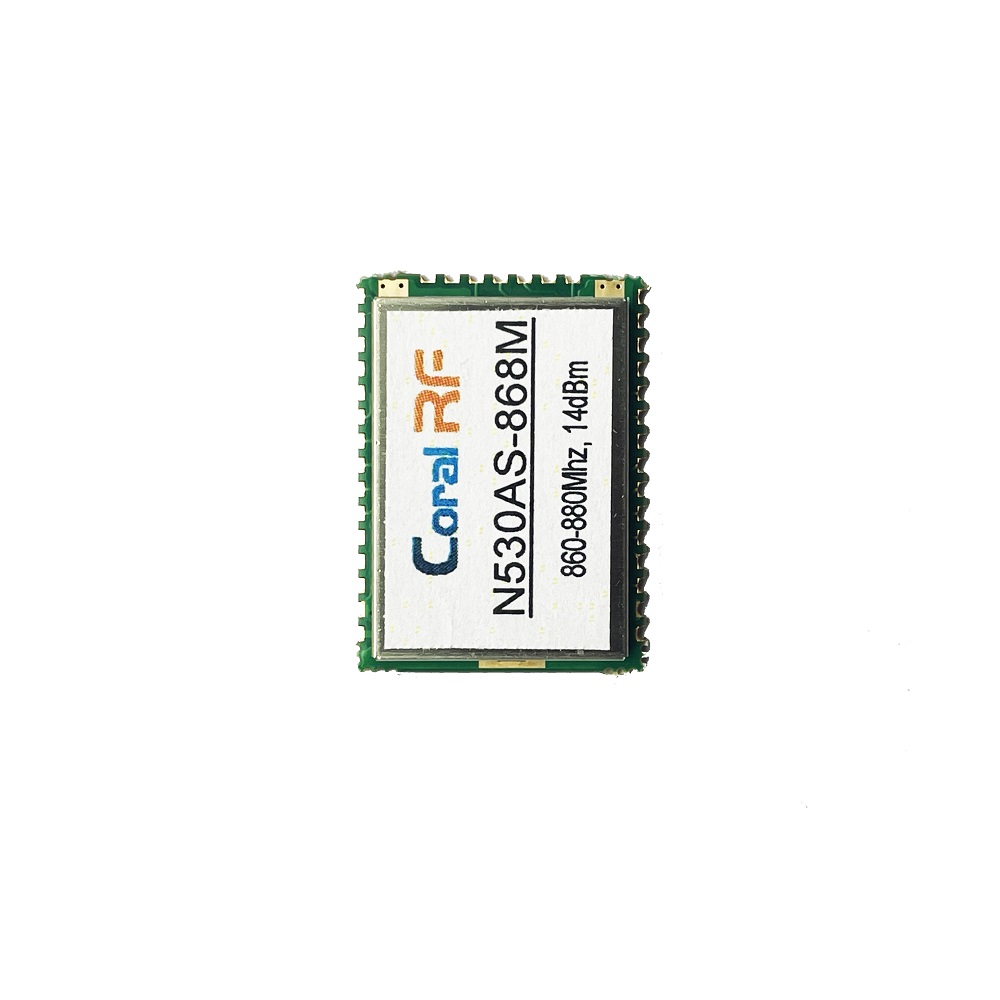

N530AS CC1310F128RGZ transceiver module designed for 433M, 868M, 915MHz. AT command and WMBUS supports.

N530AS transceiver module has the characteristics of low cost, low power consumption and small size. Module is mainly for IoT, intelligent home, wireless meter reading, scientific research and medical treatment, and medium and long-distance wireless communication equipment. N530AS leads all pins out of CC1310F128RGZ(7XD) chip for secondary development.

N530AS CC1310 transceiver module

N530AS (CC1310F128RGZ(7XD)) is suitable for free frequency band in EU and USA.


RF InterfaceParameter
Frequency433M, 860M, 960MHz
Output Power+14dBm
Sensitivity-124dBm
Symbol Rate0-4000kbps
Deviation+/-10kHz
Distance1500m


Hardware parametersValue
Module Size24.8 x 18.6 x 3mm
Antenna InterfaceIPEX, stamp hole
Communication InterfaceUART, SPI
PackageSMD


Electrical ParametersMinimumTypicalMaximum
Volt1.8V3.3V4.1V
Emission Current
24mA
Receiving Current
5.5mA
Sleep current
0.7uA
Working Temperature-30
75

ISM Frequency supported by N530AS transceiver module

433M band: 433 MHz to 435 MHz (China, EU)

470M band: 470 MHz to 510 MHz (China)

770M band: 770 MHz to 780 MHz (China)

868M band: 868 MHz to 870 MHz (China, EU, USA)

                       888 MHz to 889 MHz (Australia)

915M band: 902 MHz to 928 MHz (USA)



Downloads

N530AS datasheet

CC1310 datasheet

simplelink_cc13x0_sdk_4_20_02_07

Module Support Wireless protocols

IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), MIOTY®, Wireless M-Bus, WiSUN®, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4 stack (Sub-1 GHz), and dynamic multiprotocol manager (DMM)driver.

CC1310 Transceiver Introduce

The CC1310 transceiver device is a cost-effective, ultra-low-power, Sub-1 GHz RF device from Texas Instruments™ that is part of the SimpleLink microcontroller (MCU) platform. These devices all share a common, easy-to-use development environment with a single core software development kit (SDK) and a rich tool set. A one-time integration of the SimpleLink platform enables users to add any combination of devices from the portfolio into their design, allowing 100 percent code reuse when design requirements change. For more information, visit www.ti.com/simplelink.

With very low active RF and MCU current consumption, in addition to flexible low-power modes, the CC1310 device provides excellent battery life and allows long-range operation on small coin-cell batteries and in energy harvesting applications.

The CC1310 transceiver device combines a flexible, very low-power RF transceiver with a powerful 48-MHz Arm® Cortex®-M3 microcontroller in a platform supporting multiple physical layers and RF standards. A dedicated Radio Controller (Cortex®-M0) handles low-level RF protocol commands that are stored in ROM or RAM, thus ensuring ultra-low power and flexibility. The low-power consumption of the CC1310 device does not come at the expense of RF performance; the CC1310 device has excellent sensitivity and robustness (selectivity and blocking) performance.

The CC1310 device is a highly integrated, true single-chip solution incorporating a complete RF system and an on-chip DC/DC converter.

Sensors can be handled in a very low-power manner by a dedicated autonomous ultra-low-power MCU that can be configured to handle analog and digital sensors; thus the main MCU (Arm® Cortex®-M3) can maximize sleep time.

The power and clock management and radio systems of the CC1310 device require specific configuration and handling by software to operate correctly, which has been implemented in the TI-RTOS. TI recommends using this software framework for all application development on the device. The complete TI-RTOS and device drivers are offered free of charge in source code.

N530AS Ordering information

N530AS-433M    CC1310 transceiver chip     14dBm, 410M-510MHz

N530AS-868M    CC1310 transceiver chip     14dBm, 860M-960MHz


Other modules

N532FS-433M     CC1310+PA              24dbm, 410Mhz-510Mhz

N532FS-868M     CC1310+PA              24dbm, 860Mhz-960Mhz

N620PA-868M     CC1310+CC1190     27dbm, 860Mhz-880Mhz

N620PA-915M     CC1310+CC1190     27dbm, 910Mhz-930Mhz

N532ES-433M     CC1310+PA             30dbm, 410Mhz-440Mhz

N532ES-490M     CC1310+PA             30dbm, 470Mhz-510Mhz

N532ES-868M     CC1310+PA             30dbm, 860Mhz-880Mhz

N532ES-915M     CC1310+PA             30dbm, 910Mhz-930Mhz


Test method of N530AS module

Take the supporting base plate of Heyan technology as an example:

The bottom board of N530AS is T532AP, which integrates USB to serial chip, led, button, burning port and module card port. As shown in the figure:

CC1310 Module,CC1310 Module test

N530AS secondary development method:

The CC1310 module is stuck on the backplane as shown in the figure, and the IPEX is connected with the antenna. The burning port is connected with xds110 according to the silk screen printing, and then online simulation can be carried out to test the performance of the module.


Module Programming

The schematic diagram of the module base plate can be obtained from our official website.

Please contact us for specific programming information or download it from TI official website www.ti.com.


Files download

N530AS Software code example‍            Download N530AS datasheet            Download CC1310 datasheet



Download
N620PA cc1310 cc1190 27dbm, 868M, 915M.pdf
3.11MBDownload
N534 CC1310 uart RF dongle.pdf
1.71MBDownload
N530AS CC1310 Module 14dbm.pdf
2.44MBDownload
N532ES CC1310 PALNA Module,30dbm.pdf
3.39MBDownload
N532FS CC1310 PA Module,24dbm.pdf
4.28MBDownload
