The N518DS is an exceptional, high-performance narrowband RF module that pushes the boundaries of long-range wireless communication. It combines Texas Instruments' robust CC1201 transceiver with an integrated high-power Power Amplifier (PA) and Low-Noise Amplifier (LNA). This powerful integration delivers a remarkable +33 dBm (2 Watt) output power and excellent -126 dBm receiver sensitivity, enabling reliable communication over distances exceeding 15 kilometers under optimal line-of-sight conditions. Designed for the most demanding applications, it operates across critical Sub-1GHz ISM bands (169 MHz, 433 MHz, 868 MHz, 915 MHz) and is built for industrial environments with its extended temperature range and robust 4-layer PCB design.
2. Key Features & Benefits
Ultimate Power & Range: The integrated high-power PA enables an industry-leading +33 dBm (2W) output, combined with excellent sensitivity for a 15,000-meter theoretical range, making it one of the longest-range narrowband modules available.
Complete RF Front-End Solution: Incorporates PA, LNA, and RF switches (TXEN/RXEN/LANEN control), providing a fully managed RF chain. This significantly simplifies system design and ensures optimal performance without external components.
Global Narrowband Deployment: Supports all major regional narrowband ISM frequencies: 169 MHz (EU utility), 433 MHz (global), 868 MHz (EU), and 915 MHz (Americas), facilitating worldwide product development with a single hardware platform.
Industrial-Grade Robustness: Operates across a wide -40°C to +85°C temperature range, making it suitable for outdoor and harsh industrial environments. The module features comprehensive ESD protection and a stable power design.
Advanced Control & Flexibility: All CC1201 pins are accessible, including separate control lines for PA (TXEN), LNA (RXEN), and antenna switch (LANEN), allowing for sophisticated power management and system optimization.
High-Efficiency Power Architecture: Despite its high output, it maintains reasonable current consumption (1000mA peak TX, 27mA RX) and offers a deep 10 µA sleep mode for battery-conscious designs.
3. Detailed Technical Specifications
Category
Parameter
Specification
Notes / Conditions
RF PERFORMANCE
Frequency Bands
169 MHz, 433 MHz, 868 MHz, 915 MHz
Covers 160-175, 410-480, 860-880, 910-960 MHz.
Max. Output Power
+33 dBm (2000 mW, 2W)
Requires VCCPA = 5V.
Receiver Sensitivity
-126 dBm
@ 1.2 kbps data rate (2-FSK).
Modulation
2-FSK, 4-FSK, MSK, OOK
Programmable Data Rate
0.3 – 200 kbps
Optimized for narrowband applications.
Frequency Deviation
±1 kHz (configurable)
Typical Range
Up to 15,000 m
LOS, 1.2 kbps, 3 dBi antenna, 2.5m height.
HARDWARE

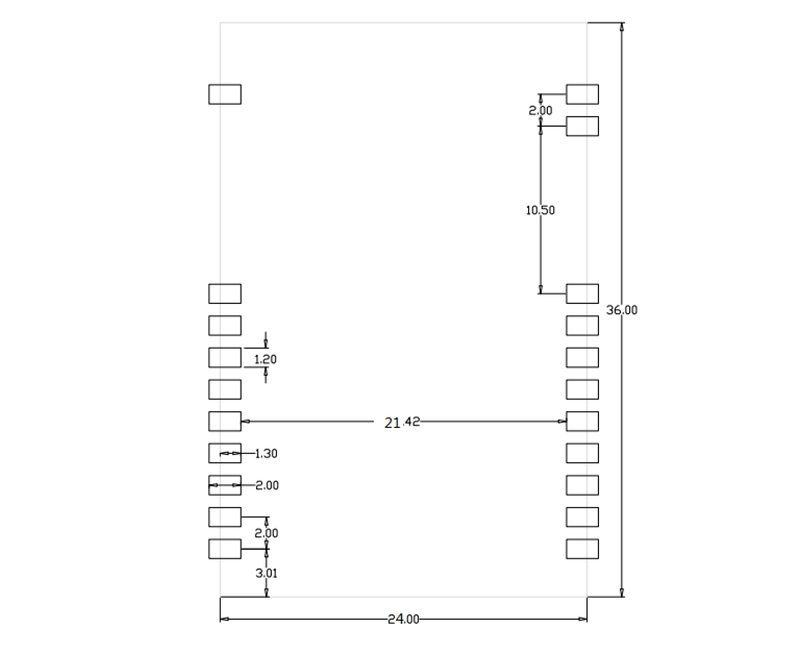

Module Dimensions
36.0 x 24.0 x 3.0 mm
Antenna Interface
IPEX Connector & RF Pad (Pin 21)
50Ω impedance.
Host Interface
SPI (MOSI, MISO, SCK, NSS) + Control GPIOs
Control Pins
TXEN, RXEN, LANEN
For PA, LNA, and antenna switch control.
Package
Surface Mount Device (SMD)
4-layer PCB.
ELECTRICAL
Digital Supply Voltage (VCC)
3.3V (Typical)
For CC1201 core logic.
PA Supply Voltage (VCCPA)
5.0V (for Max Power)
Pins 2 & 3. Must support ~1A peak.
Tx Current (Peak)
1000 mA
@ +33 dBm output, VCCPA=5V.
Rx Current
27 mA
Typical with LNA active.
Sleep Current
10 µA
Operating Temperature
-40°C to +85°C
Extended industrial grade.

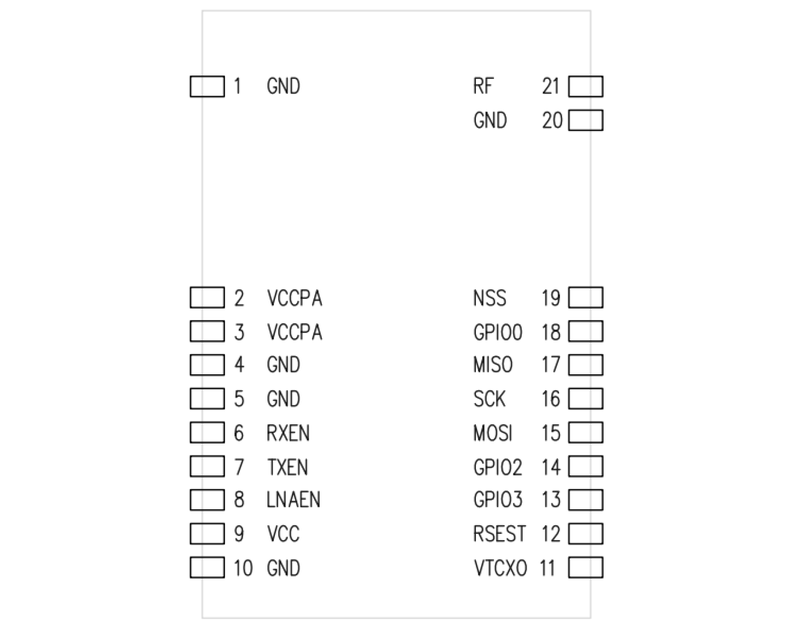

4. Pin Configuration & Critical Functions
Pin
Name
Type
Description & Critical Usage
2, 3
VCCPA
Power
PA Power Supply (5V). Must be a clean, high-current-capable 5V rail. Connect together.
9
VCC
Power
Digital Core Supply (3.3V). For the CC1201 IC.
6
TXEN
I
Transmit Enable. Set HIGH to enable the Power Amplifier (PA) for transmission.
7
RXEN
I
Receive Enable. Set HIGH to enable the Low-Noise Amplifier (LNA) for reception.
8
LANEN
I
LAN Enable / Antenna Switch Control. Controls the internal RF switch to route the antenna between PA and LNA.
21
RF
I/O
RF Input/Output. Connect to antenna via IPEX connector or matching network.
15-17, 19
MOSI, SCK, MISO, NSS
I/O
SPI Interface. For configuring the CC1201 and data exchange.
Control Sequence Example (Transmit):
Set RXEN = LOW, TXEN = LOW, LANEN = [state].
Configure CC1201 for TX mode via SPI.
Set LANEN to connect antenna to PA path (e.g., HIGH).
Set TXEN = HIGH to enable the Power Amplifier.
Initiate transmission via SPI.
5. Target Applications
Extreme-Range Industrial Telemetry: Communication with sensors, actuators, or equipment spread across vast areas like mines, farms, pipelines, or renewable energy parks.
Private Long-Range Networks: Building proprietary wireless networks for security, automation, or data backhaul where cellular coverage is unavailable.
High-Power Gateway/Repeater Nodes: Acting as a central hub or repeater in star or mesh networks to extend coverage dramatically.
Critical Infrastructure Monitoring: Monitoring of power lines, water systems, and border security over long distances.
Thermal Management: At +33dBm, the module will dissipate significant heat. Ensure adequate PCB copper pour and thermal vias under the module. For continuous high-power transmission, consider additional heatsinking.
Power Supply Design: The 5V supply for VCCPA must be capable of delivering at least 1.2A continuously and be very stable with low noise. Use large bulk capacitors (e.g., 100µF) near the module pins.
Antenna & Regulatory Compliance: A 2W output is at the upper limit (or beyond) of what is allowed in many ISM bands without a license. Users are solely responsible for ensuring compliance with local radio regulations (FCC, CE, etc.) regarding maximum allowed EIRP. Use of directional antennas may further increase EIRP and require careful calculation.
Control Logic: The TXEN/RXEN/LANEN pins must be controlled correctly to prevent damage. They should never be enabled simultaneously.
