N516CS-B is a professional-grade, high-performance RF transceiver module engineered for ultra-long-range communication in the global 868MHz and 915MHz ISM bands. Integrate Texas Instruments' advanced CC1200 transceiver, CC1190 range extender front-end and TCXO. Delivers an unparalleled combination of +27dBm output power and -126dBm receiver sensitivity. Optimal solution for developers requiring robust, reliable, and extended-range connectivity for Industrial IoT (IIoT), smart city infrastructure, and remote telemetry systems.

Key Features & Benefits

Industry-Leading Link Budget: +27dBm transmit power and -126dBm receive sensitivity, >10 km line-of-sight ranges.
Global Frequency Compliance: EU (868MHz) and North American (915MHz).

Detailed Technical Specifications

Parameter	Specification
RF Core	Texas Instruments CC1200 + CC1190
Frequency Range	860 – 960 MHz
Output Power	Up to +27 dBm
Receiver Sensitivity	Down to -126 dBm @ 1.2 kbps
Modulation	(G)FSK, 4-FSK, OOK
Max RF Data Rate	500 kbps
Host Interface	SPI (3.3V logic levels)
Supply Voltage	VCC (Core): 2.0V – 3.6V VCCPA (PA): 2.0V – 3.6V
Current Consumption	Transmit: ~460 mA @ +27dBm Receive: 35 mA Sleep: < 1 µA
Antenna Connection	PCB Pad / External IPEX Connector
Operating Temperature	-40°C to +85°C
Dimensions	29.5 mm × 21.0 mm × 3.0 mm

Target Applications

Advanced Metering Infrastructure (AMI): Smart electricity, water, and gas meters.
Industrial Telemetry & SCADA: Remote monitoring, PLC wireless communication, sensor data backhaul.
Smart City & Lighting: Street light control, environmental monitoring, parking management.
Agricultural IoT: Wide-area soil moisture, weather, and irrigation monitoring.
Asset Tracking & Logistics: Long-range warehouse and container tracking.
Security & Alarm Systems: Reliable long-distance wireless alarm transmission.

N516CS-B Module Family Comparison

All modules in our portfolio are engineered for reliability, offering a range of power options to match your specific range requirements—from short-range sensors to critical infrastructure links. The N516CS-B leverages the TI CC1200 transceiver, which offers advanced features such as automatic frequency synthesis and enhanced selectivity for congested environments.

Model	Core IC	Frequency Bands	Output Power	Sensitivity @ 1.2 kbps
N516CS-B	CC1200 + CC1190	868/915 MHz	+27 dBm	-126 dBm
N517CS-B	CC1200 + SKY66423	868/915 MHz	+31 dBm	-125 dBm
N518CS	CC1200 + PA	169/433/868/915 MHz	+33 dBm	-126 dBm
N518CS‍-B	CC1200 + PA	169/868/915 MHz	+35dBm	-126 dBm
N519CS	CC1200 + PA	169/433/868/915 MHz	+37 dBm	-126 dBm

Ordering Information

Ordering Part Number	Frequency Range	Target Region / Notes

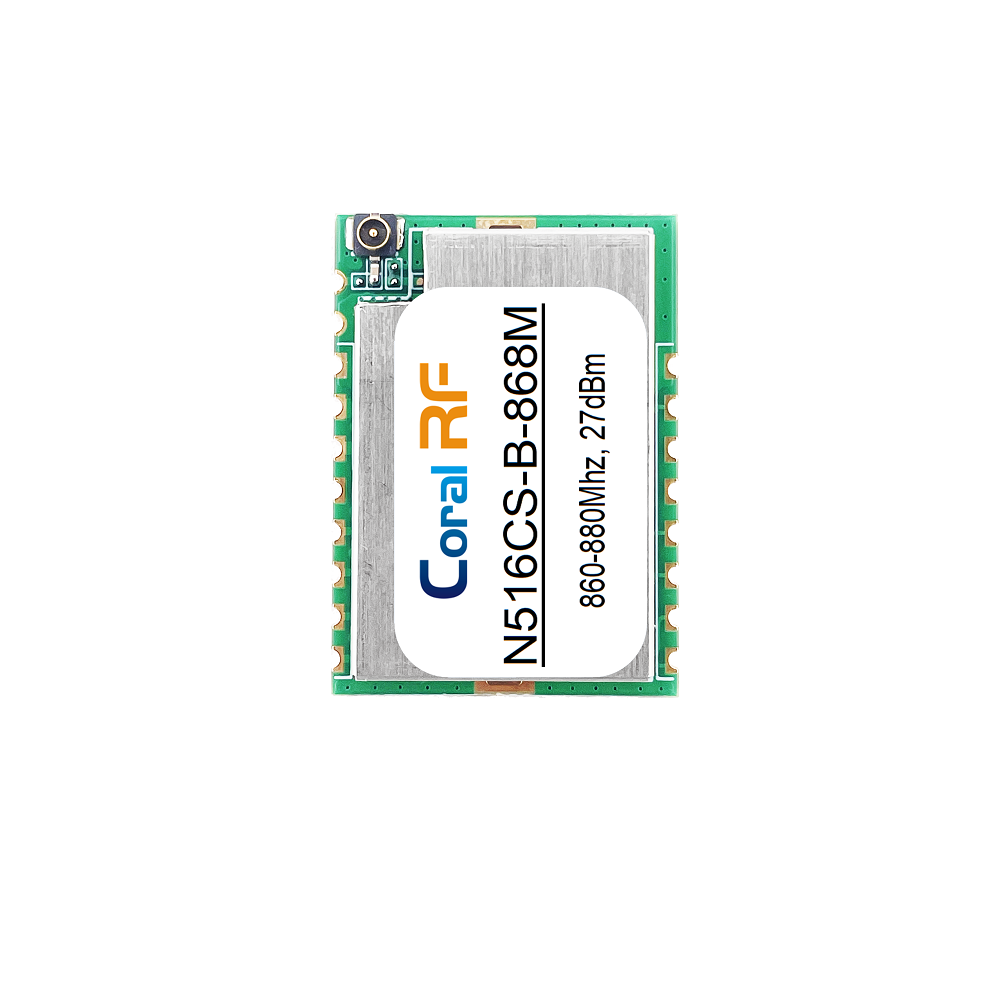

N516CS-B-868M	860 - 880 MHz	Optimized for EU 868MHz band

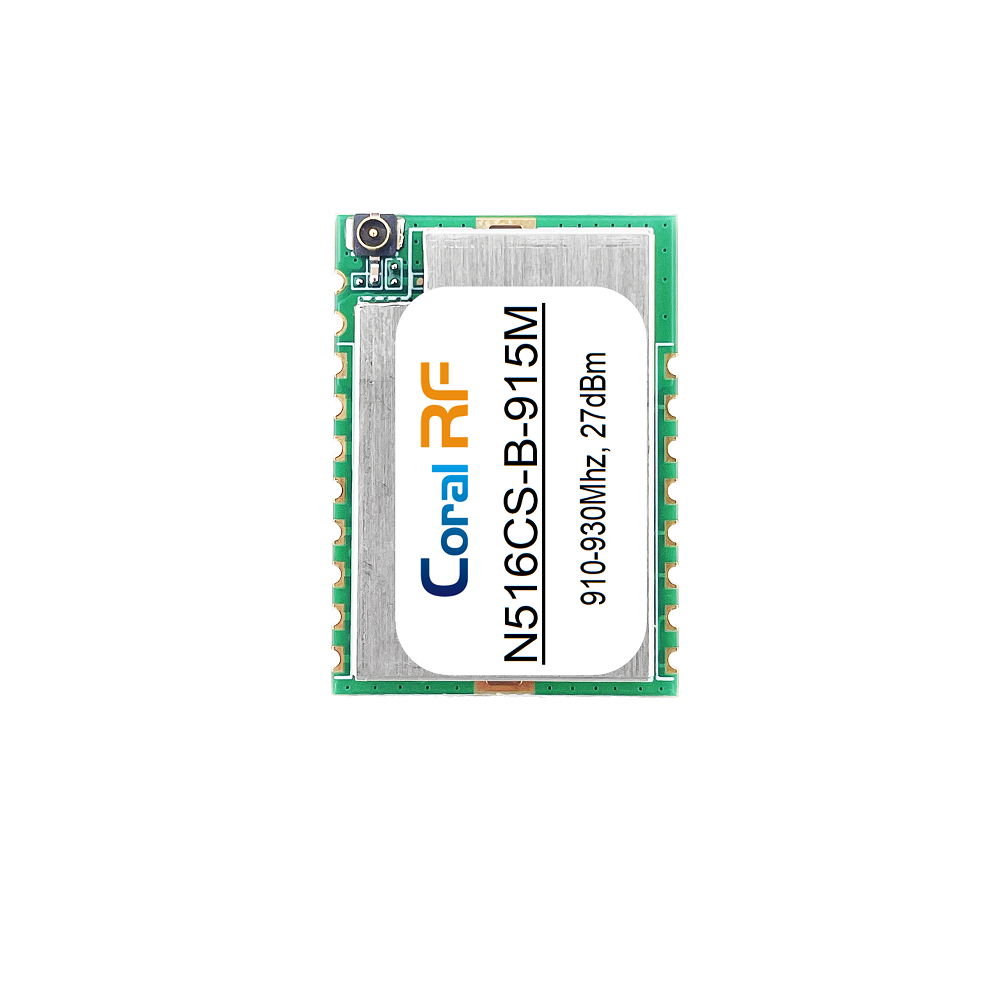

N516CS-B-915M	910 - 960 MHz	Optimized for US 915MHz band

Customization services (specific frequency, firmware, shielding) are available based on volume requirements.

Development Resources

Jumpstart your design with our comprehensive support package:

Hardware Design Kit: Includes schematic, PCB layout (Gerber), BOM, and antenna design guidelines.
Software Drivers: Sample code and SPI driver libraries for popular MCU platforms (e.g., STM32, Arduino, ESP32).
Configuration Tools: Pre-optimized register settings compatible with TI's SmartRF™ Studio for quick setup.
Evaluation Kit (Optional): USB-powered evaluation board for rapid performance testing and protocol development.
📄 Datasheet: Complete specifications, electrical characteristics, and mechanical drawings.
📘 CC1200 Technical Reference Manual: Detailed register map and programming guide.
💻 CC120x SDK: Software development kit including drivers, example code, and application notes.

Additional Design Support

Power Supply Design Guide – Tips for handling peak currents.
Antenna Selection and Matching – Maximize your link budget.
Thermal Management Recommendations – Keep your module cool under high duty cycles.
Regulatory Compliance Assistance – Navigate FCC/ETSI certification.
