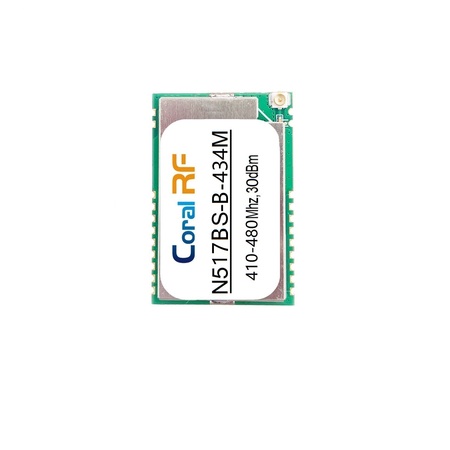

The N517BS is a high-performance, +30dBm narrowband FSK transceiver module designed for long-range IoT and M2M communication. Based on the Texas Instruments CC1125 chipset and integrated with an external PA and LNA, it delivers outstanding -126dBm receiver sensitivity and a line-of-sight range of over 15.5 km. This compact, SPI-controlled module is a complete RF solution supporting global 169 MHz, 433 MHz, 868 MHz, and 915 MHz ISM bands, ideal for smart metering (AMI), industrial telemetry, and wide-area sensor networks.

Key Features & Benefits

High Power & Superior Sensitivity: Combines +30dBm (1Watt) output power with -126dBm sensitivity at 1.2kbps to ensure robust links in challenging environments.
Global ISM Band Support: Pre-configured variants for worldwide deployment: 169MHz (China/EU utilities), 433MHz, 868MHz (EU), and 915MHz (USA).
Exceptional Range: Engineered for maximum distance, achieving >15.5 km LOS range (at 1.2kbps with a 3dBi antenna).
Compact & Complete Design: All core electronics are integrated onto a tiny 36x24x3 mm PCB, superior thermal management, simplifying your design-in process.
Standard SPI Interface & Full Pinout: Easy host microcontroller integration via SPI, with all CC1125 pins accessible for advanced customization.
Industrial Reliability: Operates reliably across an extended temperature range for harsh outdoor and industrial applications.

Technical Specifications

Category	Parameter	Specification
RF Performance	Core IC	Texas Instruments CC1125 + External PA & LNA
	Frequency Bands	169MHz, 433MHz, 868MHz, 915MHz (model-specific)
	Max. Output Power	+30 dBm (1000 mW)
	Receiver Sensitivity	-126 dBm (typical @ 1.2 kbps)
	Modulation	FSK, (G)FSK
	Data Rate (Symbol Rate)	0.3 – 200 kbps (software programmable)
	Typical Range (LOS)	> 15,500 m (1.2 kbps, 3 dBi antenna)
Hardware	Dimensions	36.0 x 24.0 x 3.0 mm
	Interface	SPI
	Antenna Connection	IPEX Connector / RF Pin
	Package	Surface-Mount Device (SMD)
Electrical	Supply Voltage (Core)	3.3 V
	Supply Voltage (PA)	3.6 V
	TX Current (peak @ +30dBm)	~800 mA
	RX Current	~35 mA
	Sleep Current	~1 µA
	Operating Temperature	-40°C to +85°C

Target Applications

Advanced Metering Infrastructure (AMI) & Smart Utilities
Industrial SCADA, Automation & Telemetry
Long-Range Environmental & Agricultural Monitoring
Alarm, Security & Wireless Sensor Networks (WSN)

Ordering Information

Ordering Code	Frequency Band	Key Specifications	Primary Target Region
N517BS-169M	160 – 175 MHz	Narrowband, +30dBm, CC1125	China, EU (Utility)
N517BS-433M	410 – 480 MHz	Narrowband, +30dBm, CC1125	China, Global
N517BS-868M	860 – 880 MHz	Narrowband, +30dBm, CC1125	European Union
N517BS-915M	910 – 960 MHz	Narrowband, +30dBm, CC1125	USA, Americas
