N516BS-B: Ultra-Long Range Sub-1GHz RF Transceiver Module
Engineered for Maximum Reach and Reliability in Demanding IoT Applications
Product Overview
The N516BS-B is a professional-grade, high-performance RF transceiver module engineered for ultra-long-range communication in the global 868MHz and 915MHz ISM bands. By integrating Texas Instruments' flagship CC1125 transceiver with the CC1190 range extender front-end and a high-stability TCXO, this module delivers an unparalleled combination of +27dBm output power and -126dBm receiver sensitivity. It is the optimal solution for developers requiring robust, reliable, and extended-range connectivity for Industrial IoT (IIoT), smart city infrastructure, and remote telemetry systems.
Key Features & Benefits
Industry-Leading Link Budget
The powerful combination of +27dBm transmit power and -126dBm receive sensitivity enables reliable communication at >10 km line-of-sight ranges.
High-Performance RF Core
Based on the proven Texas Instruments CC1125 narrowband transceiver and CC1190 PA/LNA front-end for superior RF performance.
Superior Frequency Stability
An integrated TCXO ensures stable frequency performance across the full -40°C to +85°C industrial temperature range—critical for narrowband operation.
Global Frequency Compliance

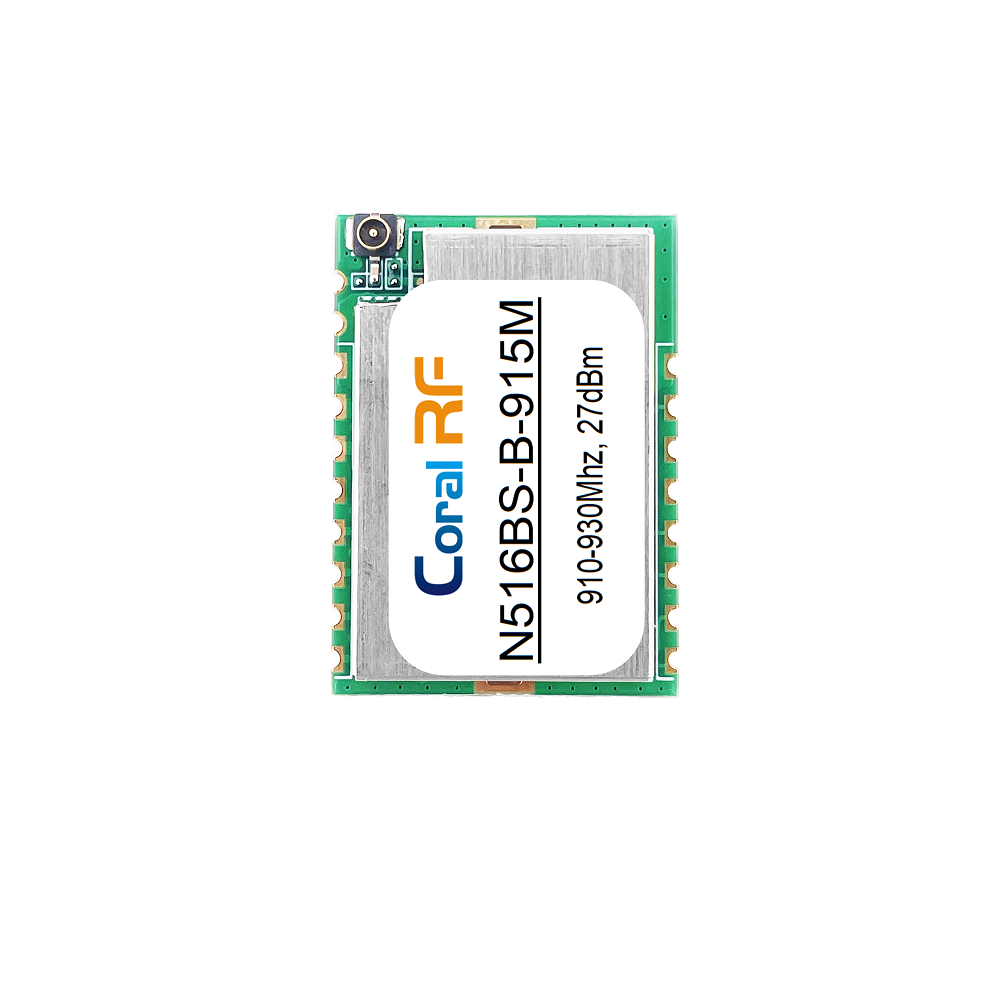

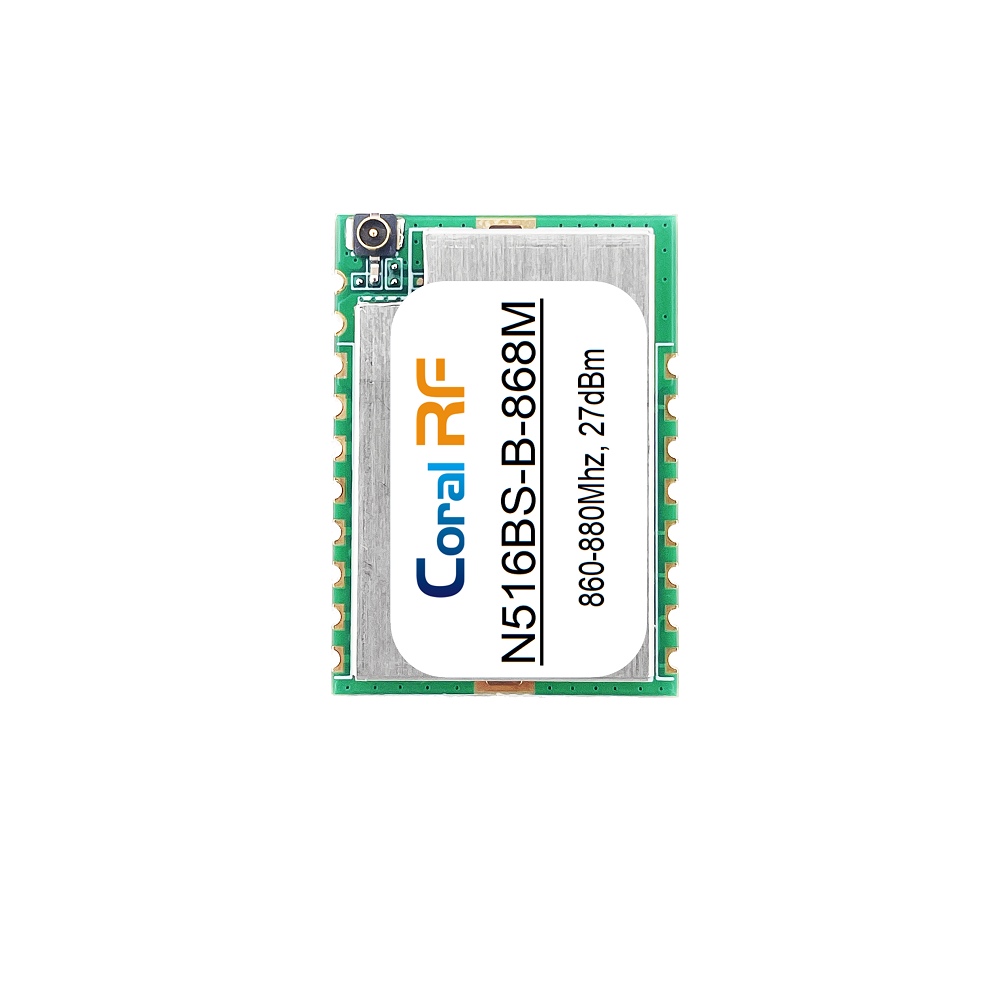

Available in variants perfectly aligned with EU (868MHz) and North American (915MHz) license-free band regulations.
Flexible Integration
Supports both Surface-Mount (SMD) and Through-Hole installation methods, streamlining prototyping and volume production.
Low Power Operation
With 35mA receive current and advanced sleep modes (<1 µA), it is well-suited for battery-powered field devices.
Complete Development Support
Accelerate your time-to-market with available reference designs, driver libraries, and configuration tools.
Detailed Technical Specifications
Power Parameters Comparison Table
| Number | Frequency | Opration Voltage | Transmit Current | CC1125 TX Power | N516BS-B TX Power | 2nd Harmonic |
|---|
| 1 | 868Mhz | 3.3V | 527mA | 15dBm | 26.70dBm | -19.15dBm |
| 2 | 868Mhz | 3.3V | 492mA | 14dBm | 26.72dBm | -19.11dBm |
| 3 | 868Mhz | 3.3V | 476mA | 13dBm | 26.20dBm | -18.90dBm |
| 4 | 868Mhz | 3.3V | 449mA | 12dBm | 25.87dBm | -18.49dBm |
| 5 | 868Mhz | 3.3V | 425mA | 11dBm | 25.49dBm | -18.14dBm |
| 6 | 868Mhz | 3.3V | 388mA | 10dBm | 24.79dBm | -17.42dBm |
| 7 | 868Mhz | 3.3V | 366mA | 9dBm | 24.36dBm | -17.16dBm |
| 8 | 868Mhz | 3.3V | 332mA | 8dBm | 23.57dBm | -17.16dBm |
| 9 | 868Mhz | 3.3V | 310mA | 7dBm | 23.02dBm | -17.49dBm |
| 10 | 868Mhz | 3.3V | 264mA | 5dBm | 21.68dBm | -18.10dBm |
| 11 | 868Mhz | 3.3V | 217mA | 3dBm | 19.63dBm | -18.24dBm |
| 12 | 868Mhz | 3.3V | 178mA | 1dBm | 17.43dBm | -21.66dBm |
| 13 | 868Mhz | 3.3V | 166mA | 0dBm | 16.59dBm | -23.26dBm |
| 14 | 868Mhz | 3.3V | 132mA | -3dBm | 13.54dBm | -31.12dBm |
Target Applications
Advanced Metering Infrastructure (AMI): Smart electricity, water, and gas meters.
Industrial Telemetry & SCADA: Remote monitoring, PLC wireless communication, sensor data backhaul.
Smart City & Lighting: Street light control, environmental monitoring, parking management.
Agricultural IoT: Wide-area soil moisture, weather, and irrigation monitoring.
Asset Tracking & Logistics: Long-range warehouse and container tracking.
Security & Alarm Systems: Reliable long-distance wireless alarm transmission.
N516BS-B Module Family Comparison
All modules in our portfolio are engineered for reliability, offering a range of power options to match your specific range requirements—from short-range sensors to critical infrastructure links.
Compare with the CC1125 Family
These modules are built around the TI CC1125 narrowband transceiver, offering a proven balance of performance and power efficiency.
📘 View full CC1125 product family — including evaluation boards and design resources
📘 View full product family — including evaluation boards and design resources
Ordering Information
Customization services (specific frequency, firmware, shielding) are available based on volume requirements.
Development Resources
Jumpstart your design with our comprehensive support package:
Hardware Design Kit: Includes schematic, PCB layout (Gerber), BOM, and antenna design guidelines.
Software Drivers: Sample code and SPI driver libraries for popular MCU platforms (e.g., STM32, Arduino, ESP32).
Configuration Tools: Pre-optimized register settings compatible with TI's SmartRF™ Studio for quick setup.
Evaluation Kit (Optional): USB-powered evaluation board for rapid performance testing and protocol development.
📄 Datasheet: Complete specifications, electrical characteristics, and mechanical drawings.
📘 CC1120/CC1125 Technical Reference Manual: Detailed register map and programming guide.
💻 CC112x SDK: Software development kit including drivers, example code, and application notes.
Additional Design Support
Power Supply Design Guide – Tips for handling peak currents.
Antenna Selection and Matching – Maximize your link budget.
Thermal Management Recommendations – Keep your module cool under high duty cycles.
Regulatory Compliance Assistance – Navigate FCC/ETSI certification.
