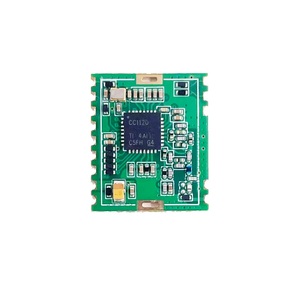

The N511AS-B is a high-performance, compact narrowband RF module built around Texas Instruments' CC1120 transceiver. Engineered for reliability and ease of integration, it features a high-stability 32 MHz TCXO (Temperature Compensated Crystal Oscillator) and comprehensive ESD protection on every pin, including the RF interface. This module delivers +15 dBm output power and excellent -121 dBm receiver sensitivity at 1.2 kbps, enabling robust communication over distances up to 2000 meters. Its fully integrated design eliminates the need for external SAW or IF filters, while the 4-layer PCB ensures optimal RF performance. With support for major Sub-1GHz ISM bands and direct compatibility with Sigfox networks and Arduino platforms, the N511AS-B is an ideal solution for demanding IoT, industrial monitoring, and wireless meter reading applications.

[📊 Download Full Datasheet Now] | [🔧 View Hardware Design Guide] | [🔧 Get cc1120 SDK]

2. Key Features & Benefits

Feature	Benefit
Reliable RF Performance	+15 dBm TX power and -121 dBm RX sensitivity, combined with a 32 MHz TCXO, ensure stable, long-range communication for narrowband applications.
Robust ESD Protection	Every I/O pin and the RF interface feature enhanced ESD protection, significantly improving durability and reliability in real-world deployments.
Global Multi-Band Support	Operates on key narrowband frequencies: 169 MHz, 433 MHz, and 868 MHz (including regional variants like 470MHz for China), facilitating worldwide product development.
Ultra-Low Power Operation	Consumes only 23 mA in RX mode and a remarkable 0.1 µA in sleep mode, making it exceptionally suitable for battery-powered, long-life devices.
Compact & Easy Integration	Extremely small 19×16×3 mm SMD package simplifies PCB design. The simple SPI interface and integrated filters allow for rapid development without deep RF expertise.
Ecosystem Compatibility	Fully compatible with Arduino development platforms and ready for integration into Sigfox LPWAN networks.

3. Detailed Technical Specifications

Get All Technical Documentation: [📘 Full Technical Specs] | [📐 3D Model Files]

Category	Parameter	Specification	Notes / Conditions
RF PERFORMANCE	Frequency Bands	169 MHz, 433 MHz, 868 MHz, 915 MHz	Covers 164-192, 410-480, 820-960 MHz ranges.
	Max. Output Power	+15 dBm (~32 mW)
	Receiver Sensitivity	-121 dBm	@ 1.2 kbps data rate (2-FSK).
	Modulation	2-FSK, 4-FSK, MSK, OOK
	Programmable Data Rate	0.3 – 200 kbps	Narrowband optimized.
	Typical Range	Up to 2000 m	Line-of-sight, ideal conditions.
HARDWARE	Module Dimensions	19.0 × 16.0 × 3.0 mm
	Antenna Interface	RF Pad (50Ω)	Requires external matching network/antenna.
	Host Interface	SPI (MOSI, MISO, SCK, NSS) + GPIOs
	Oscillator	Integrated 32 MHz TCXO	Pin 6 (VTC) for power control.
	Protection	ESD Protection on All Pins
	Package	Surface Mount Device (SMD)	4-layer PCB.
ELECTRICAL	Supply Voltage (VCC)	1.8V – 3.6V (3.3V Typical)
	Tx Current (Peak)	53 mA (Typical @ +15 dBm)
	Rx Current	23 mA (Typical)
	Sleep Current	0.1 µA (Typical)
	Operating Temperature	-30°C to +80°C	Industrial grade.

4. Target Applications

Sigfox Network End Devices: Certified for use in global Sigfox low-power wide-area networks.
Industrial Monitoring & Control (IIoT): Wireless sensor networks for equipment monitoring, environmental sensing.
Wireless Metering (AMR/AMI): Smart water, gas, and electricity meters.
Home & Building Automation: Security systems, HVAC control, smart lighting.
Arduino & Maker Projects: Easy-to-integrate wireless connectivity for educational kits and rapid prototyping.
Asset Tracking & Logistics: Low-power tracking of vehicles, containers, or high-value assets.

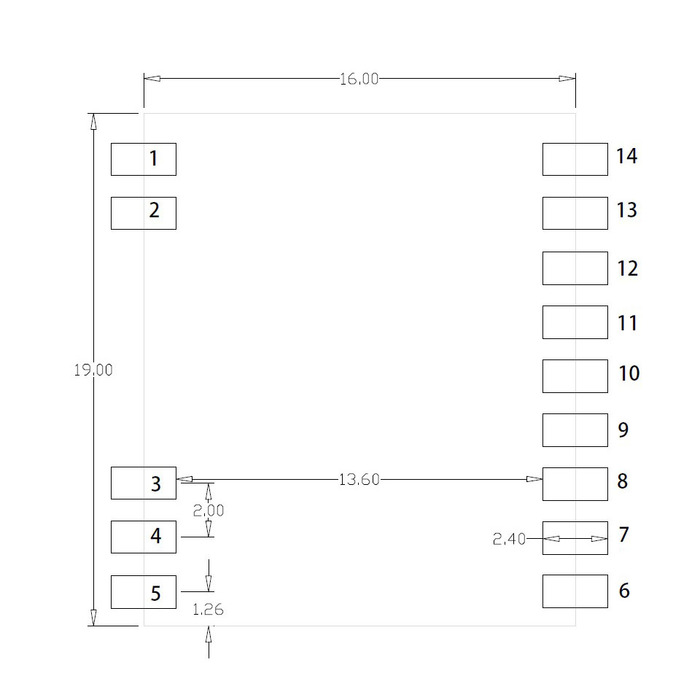

5. Pin Configuration & Critical Functions

Design Note: For proper operation, especially when using TCXO sleep control, follow this power sequence: 1) Power TCXO (VTC), 2) Wait >2ms, 3) Assert Reset (RST), 4) Configure via SPI.

Pin	Name	Type	Description
1	RF	I/O	RF Input/Output. Connect to antenna matching network.
6	VTC	Power	TCXO Power Control. Connect to VCC (always on) or a GPIO for sleep control.
8-10, 12	MOSI, MISO, SCK, NSS	I/O	SPI Interface for chip configuration and data exchange.
5	RST	I	Active-low Reset input.
4, 7, 11	GDIO3, GPIO2, GPIO0	I/O	General-purpose I/O pins from CC1120.
13	VCC	P	Power Supply (1.8V - 3.6V).
2, 3, 14	GND	P	Ground.

6. Why Choose the N511AS-B?

Engineered for Reliability and Efficiency

Exceptional Reliability: The combination of a TCXO for frequency stability and full-pin ESD protection makes it one of the most robust narrowband modules available.
Power Efficiency Leader: An ultra-low 0.1 µA sleep current sets a high standard for battery-operated applications.
Developer-Friendly: The standard SPI interface and available code examples lower the barrier to entry for wireless development.
Market-Ready Compatibility: Direct compatibility with the Sigfox and Arduino ecosystems accelerates product development and certification.

Still Evaluating?

🔄 Compare Narrowband Modules – See how the N511AS-B stacks up against our CC1125-based and high-power modules.
🚀 View Our CC1125 Wireless Portfolio

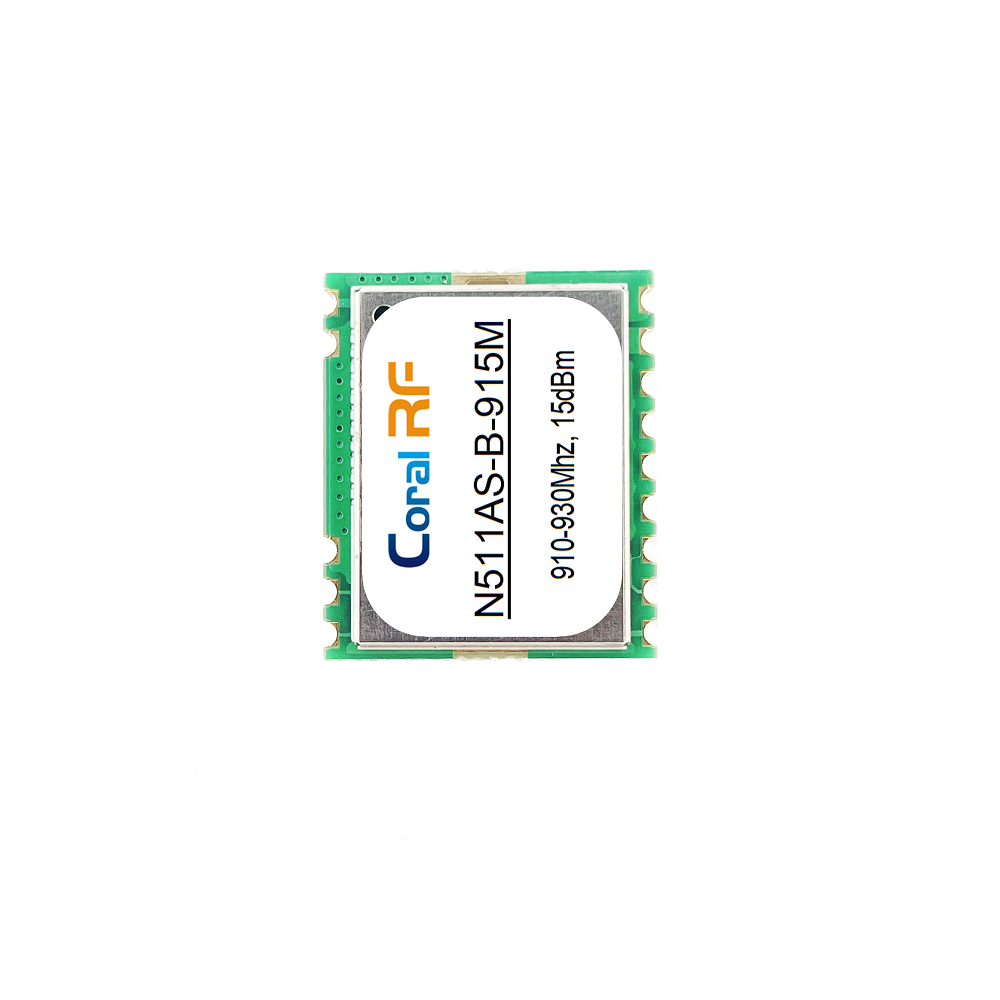

7. Ordering Information

Order Code	Core IC	Frequency Range	Output Power	Key Application

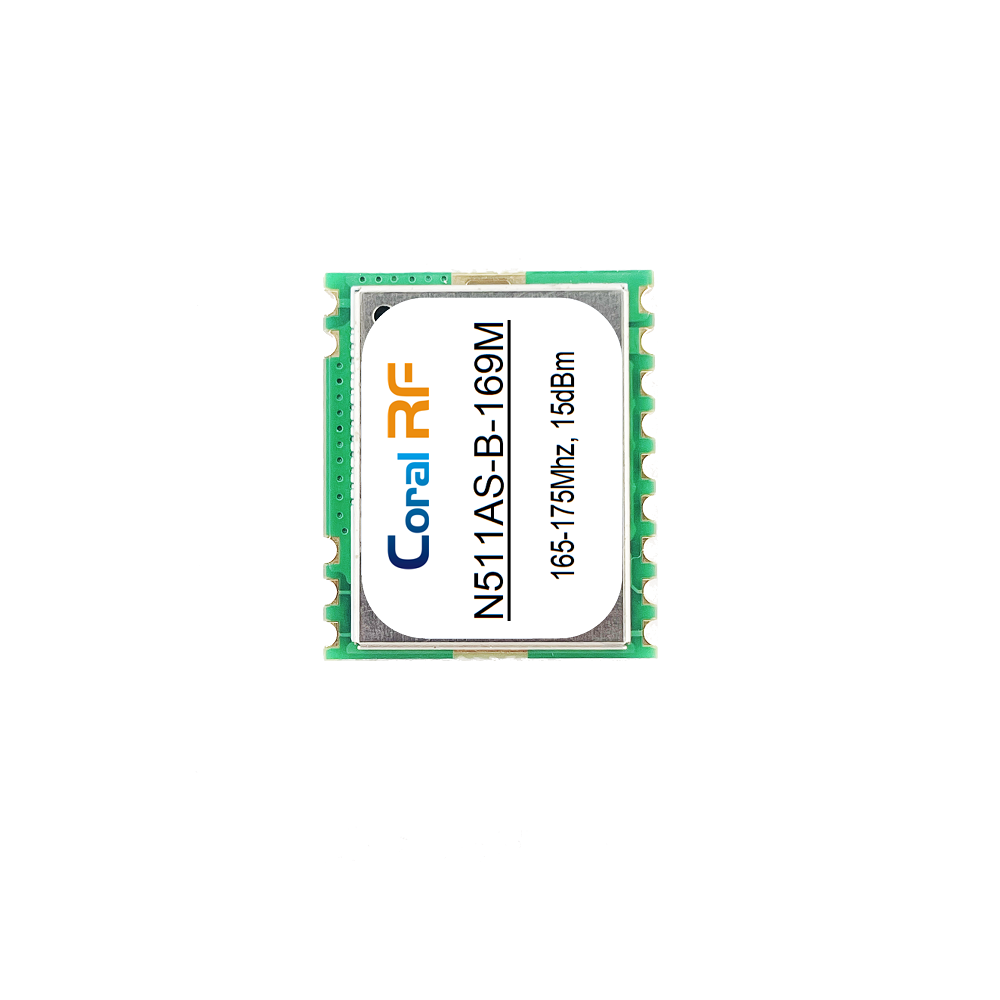

N511AS-B-169M	CC1120	160 – 175 MHz	+15 dBm	EU Utility Metering & Sigfox

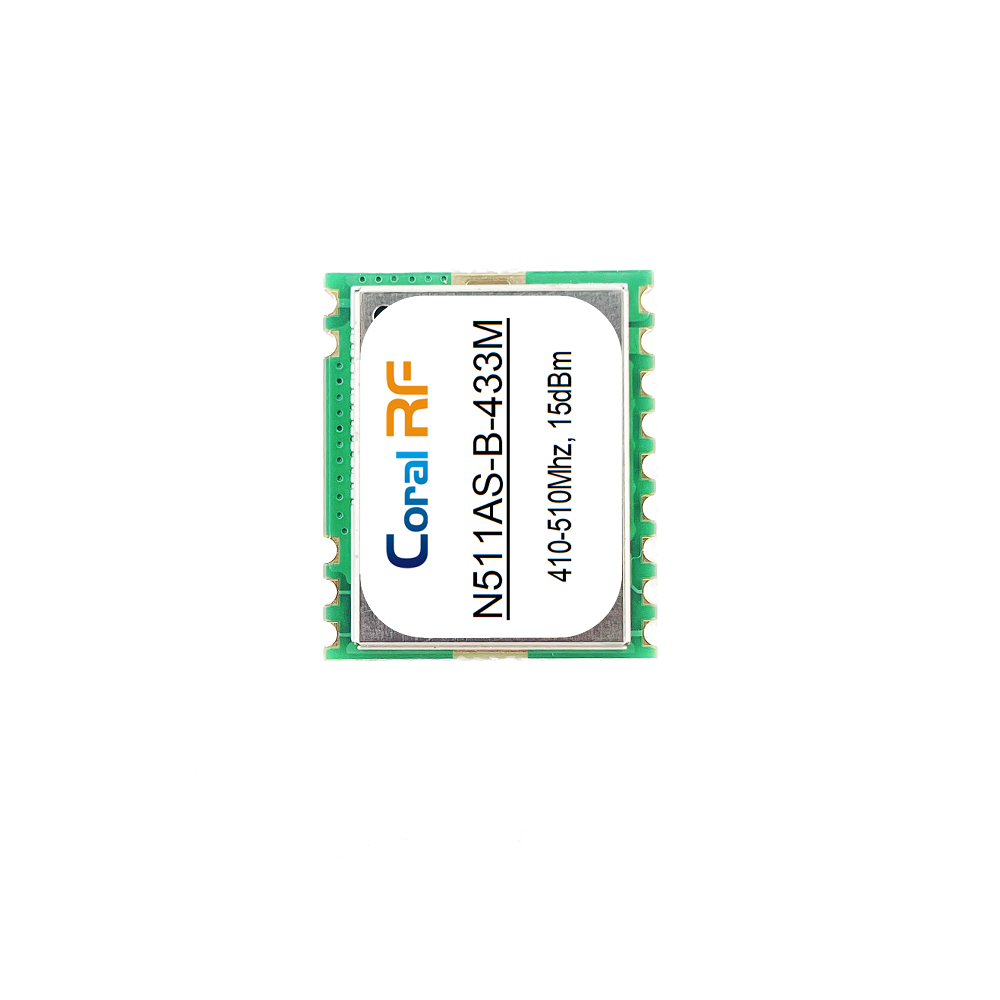

N511AS-B-433M	CC1120	410 – 480 MHz	+15 dBm	Global ISM & Consumer IoT

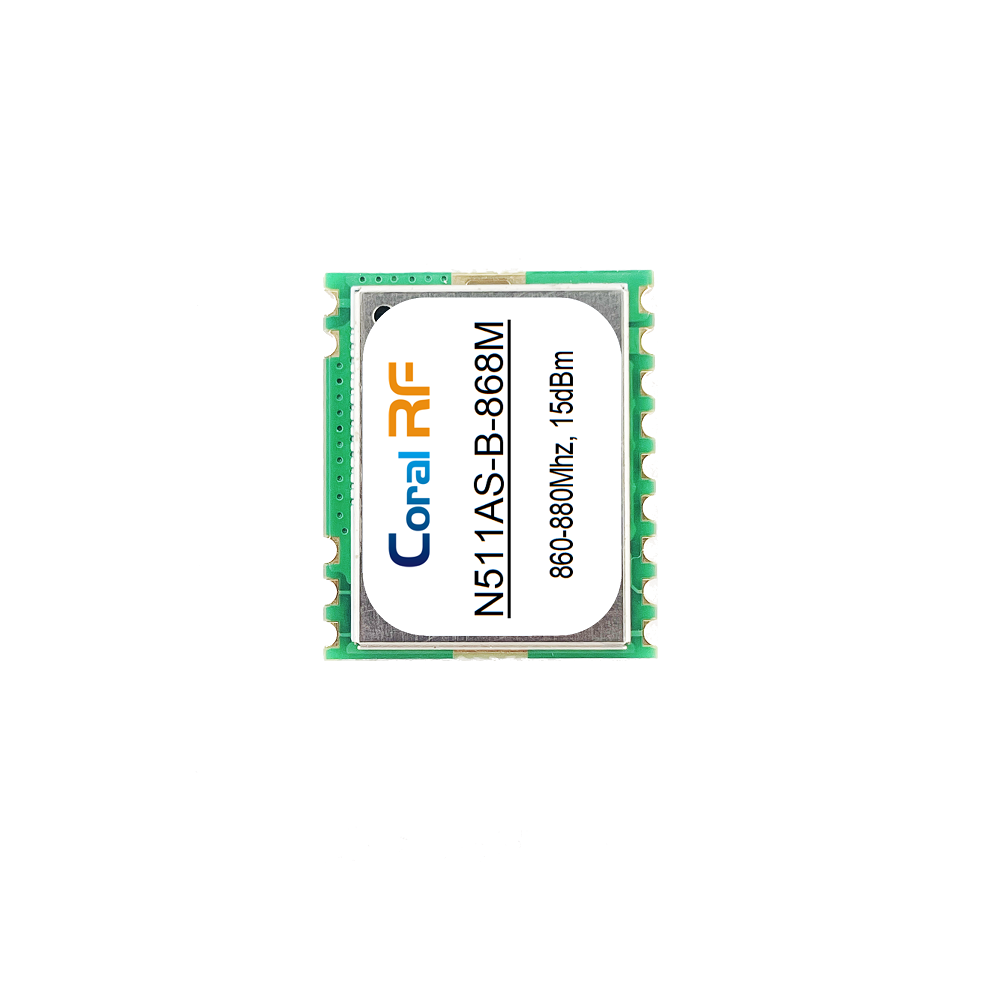

N511AS-B-868M	CC1120	860 – 960 MHz	+15 dBm	European Sigfox & LPWAN

Unsure which frequency to choose? [🛠️ Consult an Engineer for Selection Advice]

Need Higher Power or Specialized Variants?

The N511AS-B provides a balanced, cost-effective foundation for most narrowband applications. If your project requires extended transmission range, higher output power for challenging environments, or specialized form factors, explore our enhanced, high-power (G)FSK modules built on the same reliable CC112x platform.

Dimension	0.3-Watt Enhanced Module	0.5-Watt Extended Range Module	2-Watt Maximum Power Module
Product Model	N515AS-B Module	N516AS-B Module	N518AS Module
Core IC(s)	CC1120 + High-Efficiency PA	CC1120 + CC1190 Front-End	CC1120 + Industrial-Grade PA
Protocol Support	(G)FSK, MSK, OOK	(G)FSK, MSK, OOK	(G)FSK, MSK, OOK
Key Upgrade Highlights	+25 dBm (~0.3W) Output Power • Ideal for urban/suburban networks • ~60% range improvement over +15dBm modules • Balanced power consumption	+27 dBm (~0.5W) Output Power • Designed for rural/rugged deployments • Excellent penetration through dense vegetation and structures • Suitable for telemetry and remote monitoring	+33 dBm (~2W) Output Power • Maximum legal power for industrial use • Ultra-long-range telemetry (10km+) • Critical infrastructure and remote sensing
Ideal Use Case	Urban & Suburban Networks • Smart city deployments (lighting, parking) • Building automation and HVAC control • Medium-range agricultural monitoring	Rural & Challenging Environments • Agricultural automation over large farms • Forest fire detection and environmental monitoring • Mining and quarry equipment tracking	Industrial & Critical Infrastructure • Pipeline and utility monitoring • Offshore and maritime communications • Emergency response and disaster recovery
Form Factor	SMD Module (Compact)	SMD Module (Enhanced thermal design)	SMD Module (Industrial-grade)
Learn More	[View N515AS-B Details]	[View N516AS-B Details]	[View N518AS Details]

How to Choose?

Choose the N511AS-B if you are developing typical narrowband applications that require +15dBm output, ultra-low power consumption, and optimal cost. It's perfect for smart meters, environmental sensors, and most battery-operated IoT devices.
Upgrade to the N515AS-B if your application operates in urban environments with obstructions or needs approximately 60% more range than the standard module. This is ideal for smart city infrastructure and building management systems that require a higher link budget.
Choose the N516AS-B for rural, agricultural, or geographically challenging deployments where distance is critical. With +27dBm output, it can cover large farms, forests, or uneven terrain where standard modules may struggle.
Select the N518AS only for mission-critical industrial applications that require the maximum possible communication range and can accommodate higher power consumption. This includes remote telemetry, critical infrastructure monitoring, and applications where communication reliability cannot be compromised.
